Запчасти Case IH PATRIOT 3340 (78.120.AF[01]) - FOAM TANK FILL STATION (78) - SPRAYING

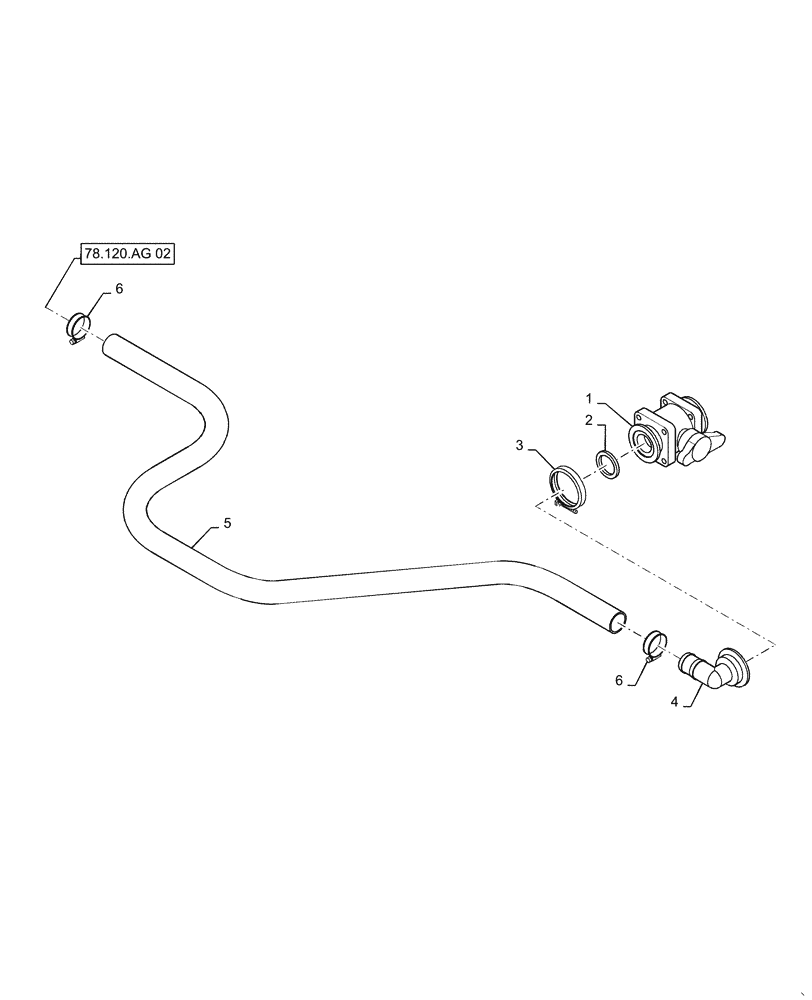

Схема запчастей Case IH PATRIOT 3340 - (78.120.AF[01]) - FOAM TANK FILL STATION (78) - SPRAYING
5
6
1
2
3
78.120.ag 02
6
4

Артикул

Название

Примечание

Количество

1

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange With Tee Handle

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

4

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

5

BN53842

HOSE,38.10 mm ID Bulk

Discharge

7шт.

6

BN310447

HOSE CLAMP

#20, SST

2шт.

Выбрано товаров: 6
