Запчасти Case IH PATRIOT 3340 (78.120.AC[03]) - AIR REGULATOR (78) - SPRAYING

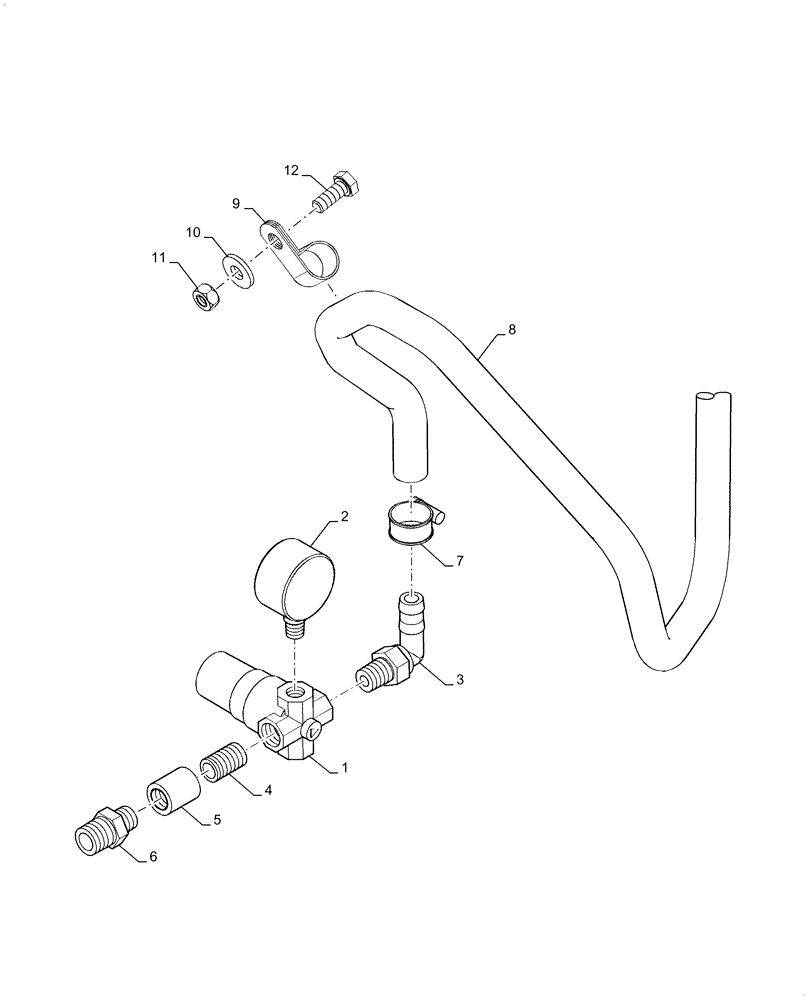

Схема запчастей Case IH PATRIOT 3340 - (78.120.AC[03]) - AIR REGULATOR (78) - SPRAYING
2
5
9
3
12
1
10
8
7
6
4
11

Артикул

Название

Примечание

Количество

1

87388151

REGULATOR

Air Pressure

1шт.

2

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

3

87265091

FITTING

1/4" NPT x 1/2" Hose Barb, 90º, Poly

1шт.

4

BN1420036

NIPPLE

1/4" NPT, Close, SST

1шт.

5

BN73015

COUPLING

1/4" NPT, Full, SST

1шт.

6

BN324303

LUBE NIPPLE

Red, 3/8" NPT X 1/4" NPT, SST

1шт.

7

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

8

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge, Air Supply Hose To Center Section Solenoid

1шт.

9

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

Выбрано товаров: 12
