Запчасти Case IH PATRIOT 3340 (78.120.AB[02]) - FOAM MARKER MIXING CHAMBER (78) - SPRAYING

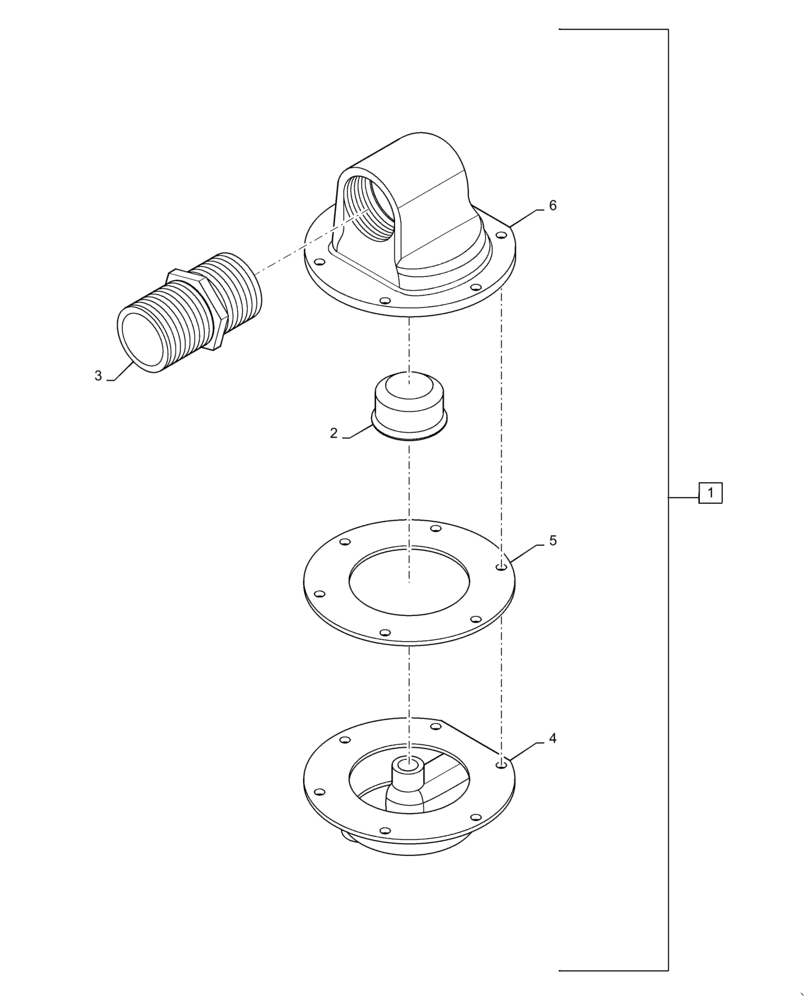

Схема запчастей Case IH PATRIOT 3340 - (78.120.AB[02]) - FOAM MARKER MIXING CHAMBER (78) - SPRAYING
3
6
5
4
1
2

Артикул

Название

Примечание

Количество

1

BN307636

CHAMBER

Foam Mixing, Assembly, Incl 2 - 6

1шт.

2

21965

SCREEN

Foam Head, 3/8" Screen Strainer

1шт.

3

BN313211

NIPPLE

Hex, 1-1/4"

1шт.

4

21964

HOUSING

Base, Foam Mixing Chamber

1шт.

5

21966

GASKET

Foam Mixing Chamber

1шт.

6

21967

HOUSING

Top, Foam Mixing Chamber

1шт.

Выбрано товаров: 6
