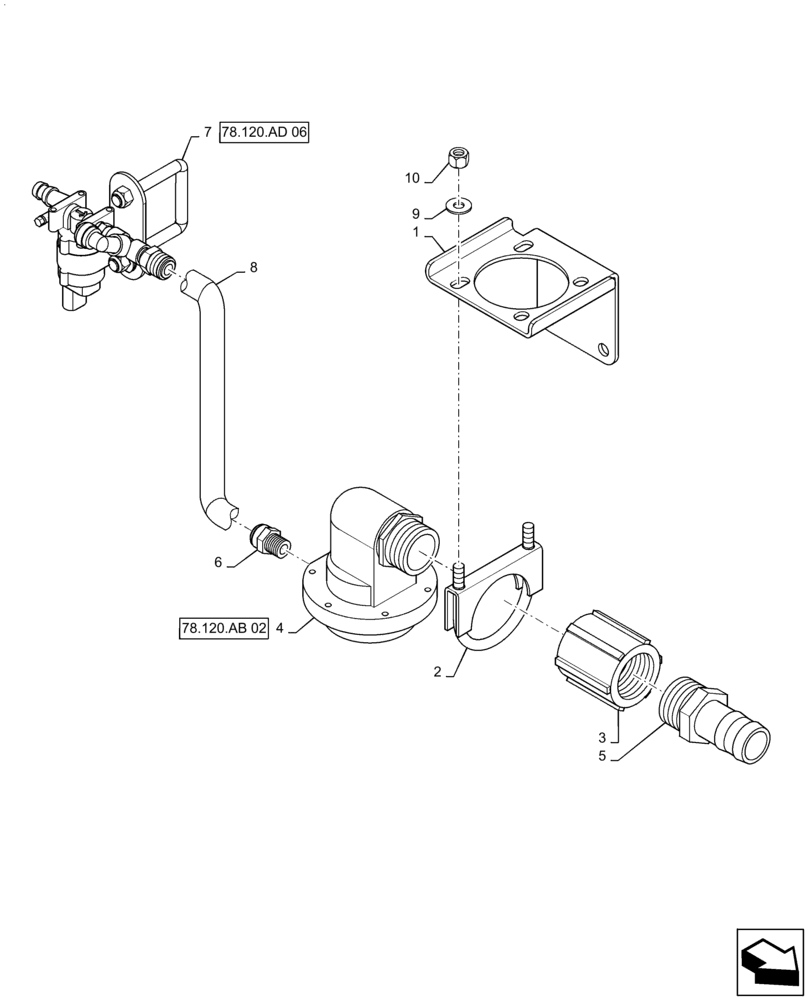

Запчасти Case IH PATRIOT 3340 (78.120.AB[01]) - FOAM MARKER CHAMBER / SOLENOID (78) - SPRAYING

1

87266740

PLATE

Foamer Chamber

1шт.

2

BN21276

CLAMP

2 - 1/2"

1шт.

3

BN305269

COUPLING

1 - 1/4" NPT

1шт.

4

BN307636

CHAMBER

Foam Mixing

1шт.

See Fig 78.120.AB 02 For Service Parts

1шт.

5

87743696

FITTING

1 - 1/4" NPT x 1 - 1/4" Hose Barb

1шт.

6

BN2399412

ADAPTER

3/8" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

7

87663822

VENTURI

Solenoid Assembly

1шт.

See Fig 55.635.AC 01 For Service Parts

1шт.

8

84422568

TUBE,3/8" X 50' BULK, SAE J844, BLACK

1шт.

9

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406" x 0.812" x 0.065", HTS, DOR, HDN

2шт.

10

87343970

NUT,3/8"-16, G8, DOR

2шт.
