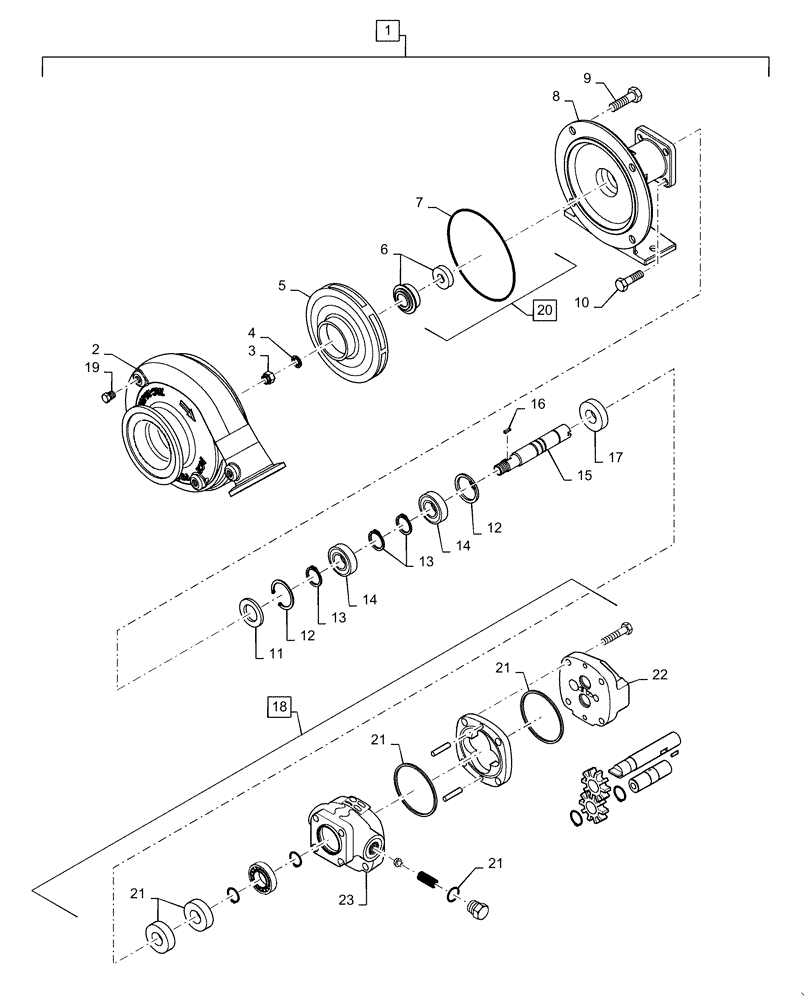

Запчасти Case IH PATRIOT 3340 (78.111.AA[02]) - PRODUCT PUMP AND DRIVE (78) - SPRAYING

1

84319987

PUMP,11.49 CC

Product, Complete, Incl 2 - 19

1шт.

1

84319987R

REMAN-WATER PUMP

Product, Complete, Incl 2 - 19

1шт.

1

84319987C

CORE-WATER PUMP

Return Number

1шт.

2

87598189

CASTING

Pump

1шт.

3

87598197

NUT

3/8" NPT, SST

1шт.

4

BN325952

WASHER

3/8", Star, SST

1шт.

5

BN325954

IMPELLER

Thermoplastic

1шт.

6

84345092

SEAL

Silicon Carbide

1шт.

7

BN325955

O-RING

Body Seal

1шт.

8

84345096

FRAME

Mounting, Pump

1шт.

9

87598199

SCREW,3/8" x 3/4"

4шт.

10

87608631

SCREW,Hex, 5/16" x 3"

4шт.

11

BN325959

SLINGER

1шт.

12

BN325960

SNAP RING

Internal

2шт.

13

84345098

SNAP RING

External

1шт.

14

84345099

BEARING ASSY

Sealed

1шт.

15

84345100

SHAFT

Extended Keyway, Tang, SS

1шт.

16

BN325964

KEY

1/8" X 1/8" X 13/16", Extended Keyway

1шт.

17

84345102

SPACER

Seal Support

1шт.

18

87598211

HYDRAULIC MOTOR,11.49 CC

18 GPM, Complete, #12 End Ports, #6 Case Drain

1шт.

18

87598211R

REMAN-HYD MOTOR

18 GPM

1шт.

18

87598211C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

19

87598194

PIPE PLUG

4шт.

20

84345104

REPAIR KIT

Product Pump Seals, Incl 6 - 7

1шт.

21

87269847

REPAIR KIT

Hydraulic Motor Seals

1шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Inlet / Outlet Ports

2шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Drain Port

1шт.
