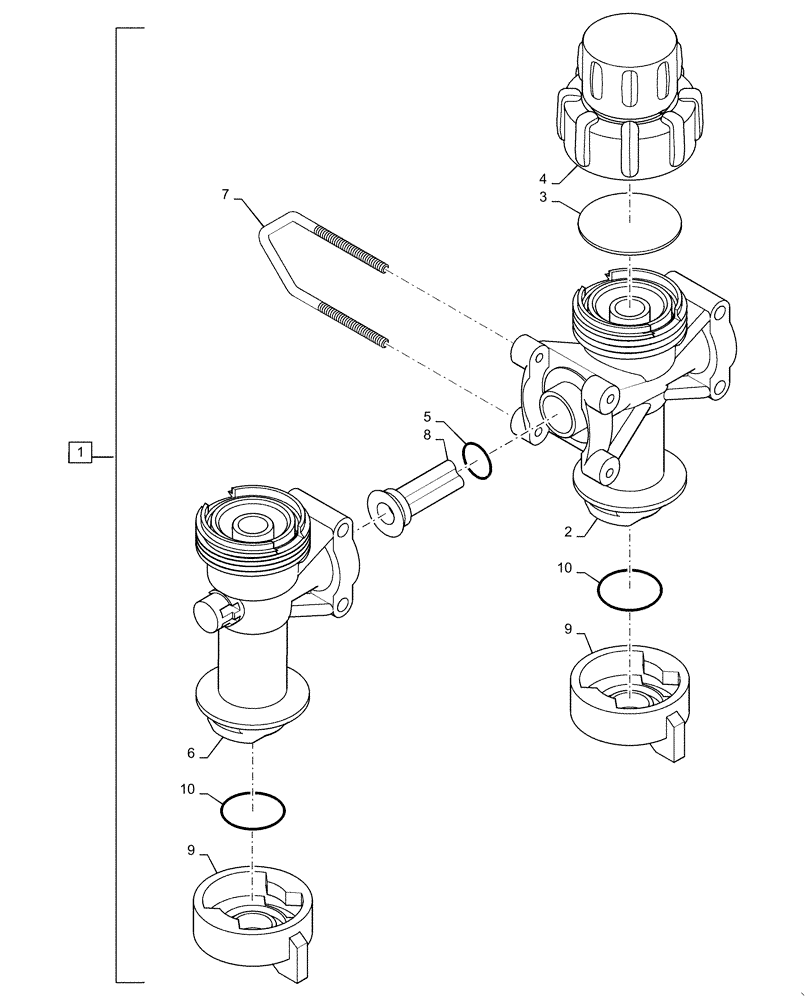

Запчасти Case IH PATRIOT 3340 (78.110.AM[04]) - WILGER DUAL NOZZLE (78) - SPRAYING

1

BN325221

NOZZLE

Dual, Wilger, Incl 2 - 10

1шт.

2

84153116

BODY

Thru, Diaphragm Style

1шт.

3

84153112

DIAPHRAGM

1шт.

4

84153113

MODULE

Shut - Off Assy

1шт.

5

84153115

O-RING,0.484" ID x 0.139" Width

1шт.

6

84153114

END

Body, Diaphragm Style

1шт.

7

84153117

LOCK,U-Clip 302SS

U - Clip

1шт.

8

84157747

SCREEN,Inter-Body Strainer Assy, 80 M

Strainer Assembly, Interbody, 80 Mesh

1шт.

9

84244013

PLUG,Plug,Cap-Black,w/ O-ring

Cap, With O - Ring

2шт.

10

8408

O-RING,13 mm x 3 mm

Nozzle Seal Combo - Jet

2шт.
