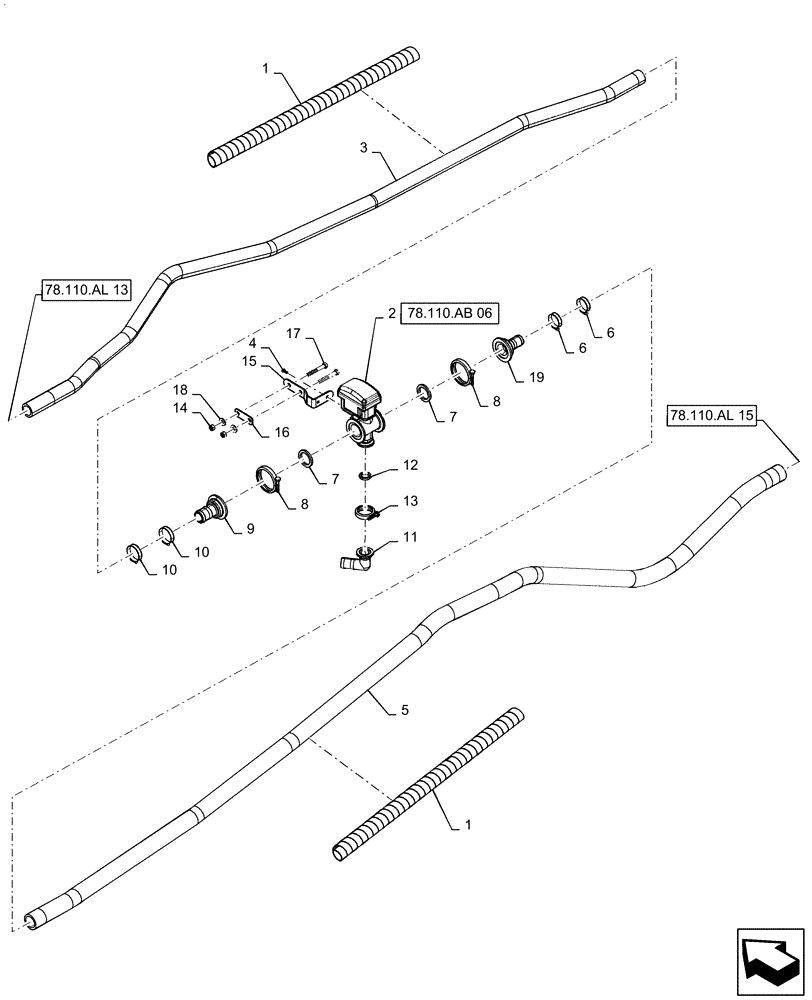

Запчасти Case IH PATRIOT 3340 (78.110.AL[16]) - 120, 7 SECTION, RH MID BOOM PLUMBING (78) - SPRAYING

1

84414496

PROTECTOR

Hose Wrap

1шт.

2

87632830

SHUT-OFF VALVE

"T" Style, Plunger, 2" Flange Port x 2" Flange Port x 2" Flange Port

1шт.

See 78.110.AB 06 For Service Parts

1шт.

3

BN53842

HOSE,38.10 mm ID Bulk

EPDM

1шт.

4

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

5

84345284

HOSE,31.8mm ID x 6134mm L

Bulk, 1-1/4" ID, EPDM

1шт.

6

BN320156

HOSE CLAMP

#24, SST

2шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

9

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb

1шт.

10

BN310448

HOSE CLAMP

#28, SST

2шт.

11

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

90º, 1" Flange x 1-1/4" Hose Barb

1шт.

12

BN303205

GASKET

1” Flange, EPDM

1шт.

13

BN303203

CLAMP,1" Flange

1" Flange

1шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

15

87625608

MOUNTING PARTS

Boom Valve

1шт.

16

87628243

PLATE

1-1/2" Tube

2шт.

17

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10-1.5 X 70, 8.8, DOR

1шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

19

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1-1/4" Hose Barb

1шт.
