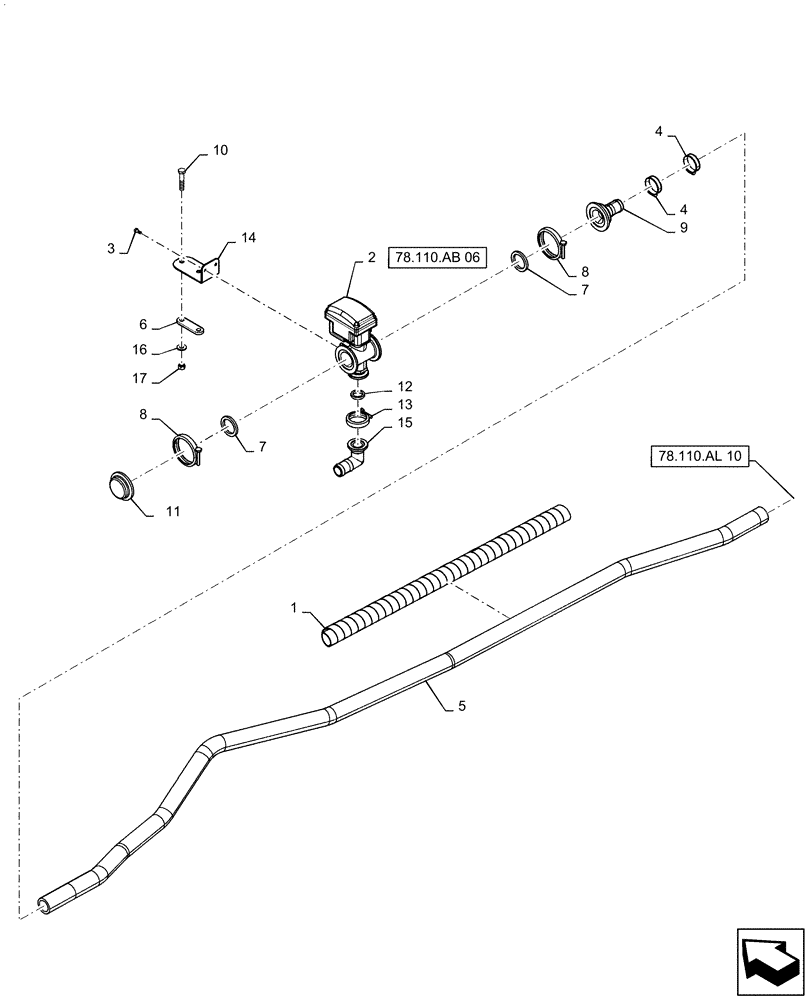

Запчасти Case IH PATRIOT 3340 (78.110.AL[11]) - 120, 7 SECTION, LH OUTER BOOM PLUMBING (78) - SPRAYING

1

84414496

PROTECTOR

Hose Wrap

1шт.

2

87632830

SHUT-OFF VALVE

Electric Plunger, 2" Flange x 1" Flange, 3/4" Full Port

1шт.

See 78.110.AB 06 For Service Parts

1шт.

3

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

4

BN320156

HOSE CLAMP

#24, SST

2шт.

5

BN29563

HOSE

1-1/4" ID, EPDM, Bulk

1шт.

6

BN308039

PLATE

Spacer Plate

1шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

9

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1-1/4" Hose Barb

2шт.

10

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

M10 x 55, 8.8, DOR

2шт.

11

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

1шт.

12

BN303205

GASKET

1” Flange, EPDM

2шт.

13

BN303203

CLAMP,1" Flange

1" Flange

2шт.

14

87270047

MOUNT

Outer Boom Valve

1шт.

15

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

90º, 1" Flange x 1-1/4" Hose Barb

1шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

17

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
