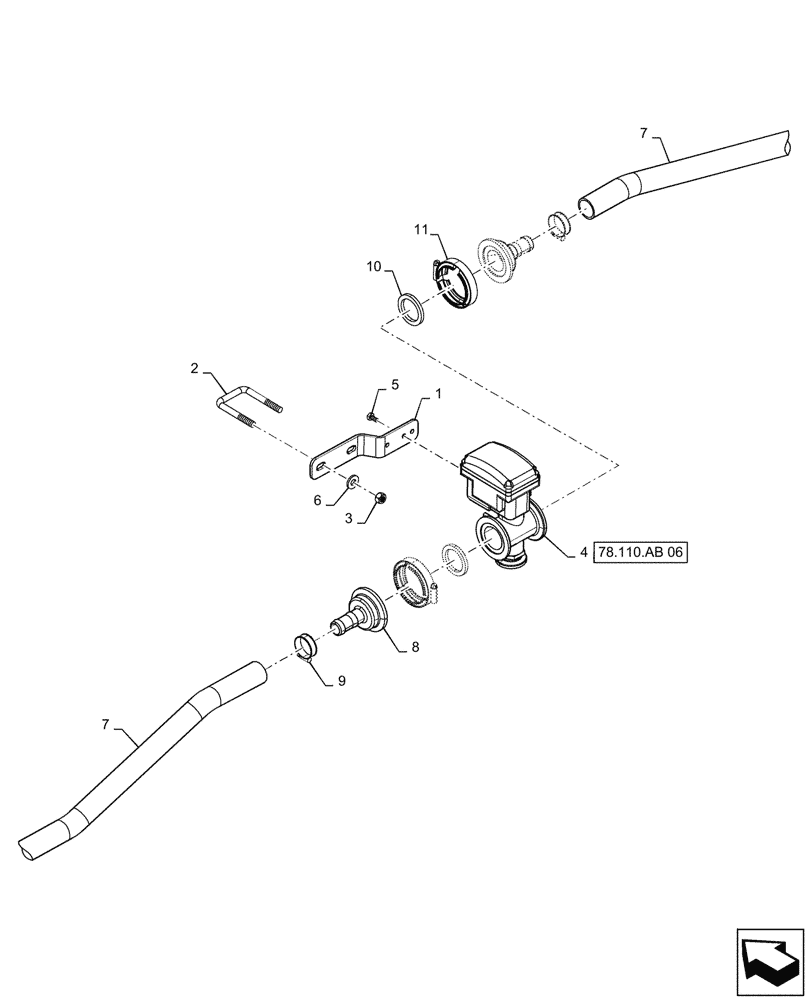

Запчасти Case IH PATRIOT 3340 (78.110.AL[09]) - 100 6 SECTION, LO FLOW, INNER BOOM VALVES (78) - SPRAYING

1

47945077

MOUNT

Boom Shutoff Valve

1шт.

2

47650282

U-BOLT

2.06" ID x 2 - 3/4" x 3/8"

1шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

4

87268840

VALVE

Lo-Flow Boom Shutoff

1шт.

See Fig 78.110.AB 06 For Service

1шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

7

BN53479

HOSE,1.00" ID BULK

30' Roll

1шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2шт.

9

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

10

47888705

GASKET

2"

2шт.

11

BN303199

CLAMP,2" Flange

2шт.
