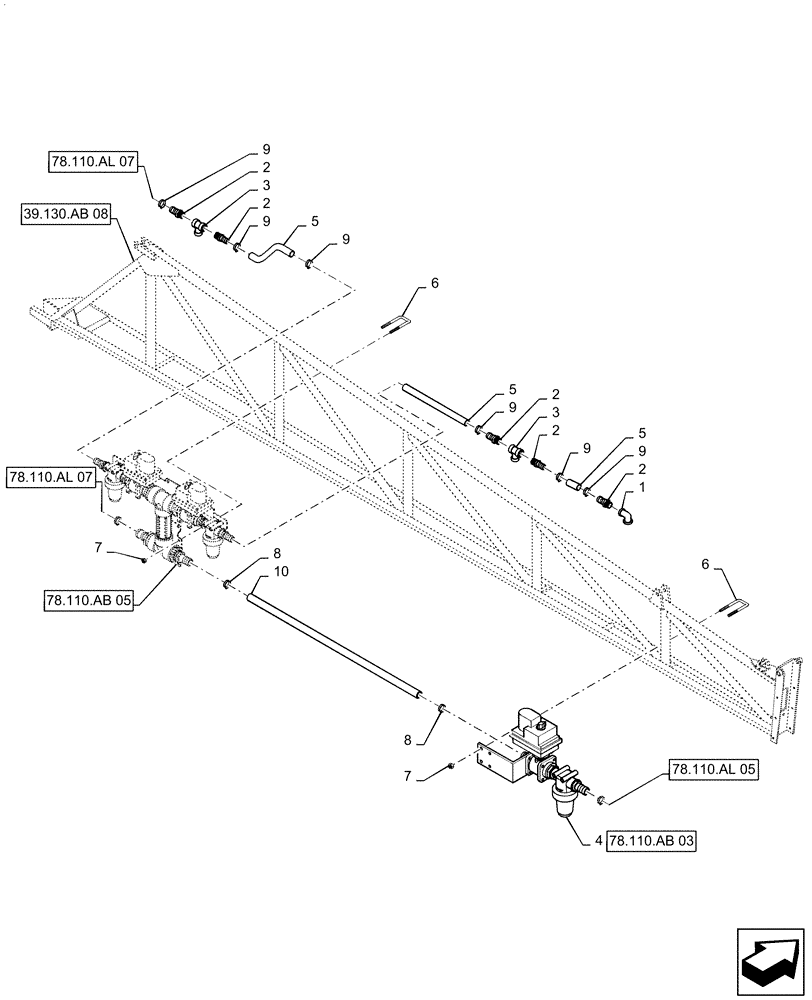

Запчасти Case IH PATRIOT 3340 (78.110.AL[08]) - 90/100, 6 SECTION, RH INNER BOOM PLUMBING (78) - SPRAYING

1

BN313202

ELBOW

1-1/4" NPT, 90°

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb

5шт.

3

BN73662

TEE

1-1/4"

2шт.

4

BN321452

VALVE

Complete

1шт.

See 78.110.AB 04 For Service Parts

1шт.

5

BN53479

HOSE,1.00" ID BULK

EPDM

1шт.

6

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

5шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

8

BN310447

HOSE CLAMP

#20, SST

2шт.

9

87487834

CLAMP,0.81" - 1.5"

#16 SST

8шт.

10

BN29563

HOSE

Bulk, 1-1/4" EPDM

1шт.
