(78.110.AL[07]) - 90/100, 6 SECTION, CENTER BOOM PLUMBING

Запчасти Case IH PATRIOT 3340 (78.110.AL[07]) - 90/100, 6 SECTION, CENTER BOOM PLUMBING (78) - SPRAYING

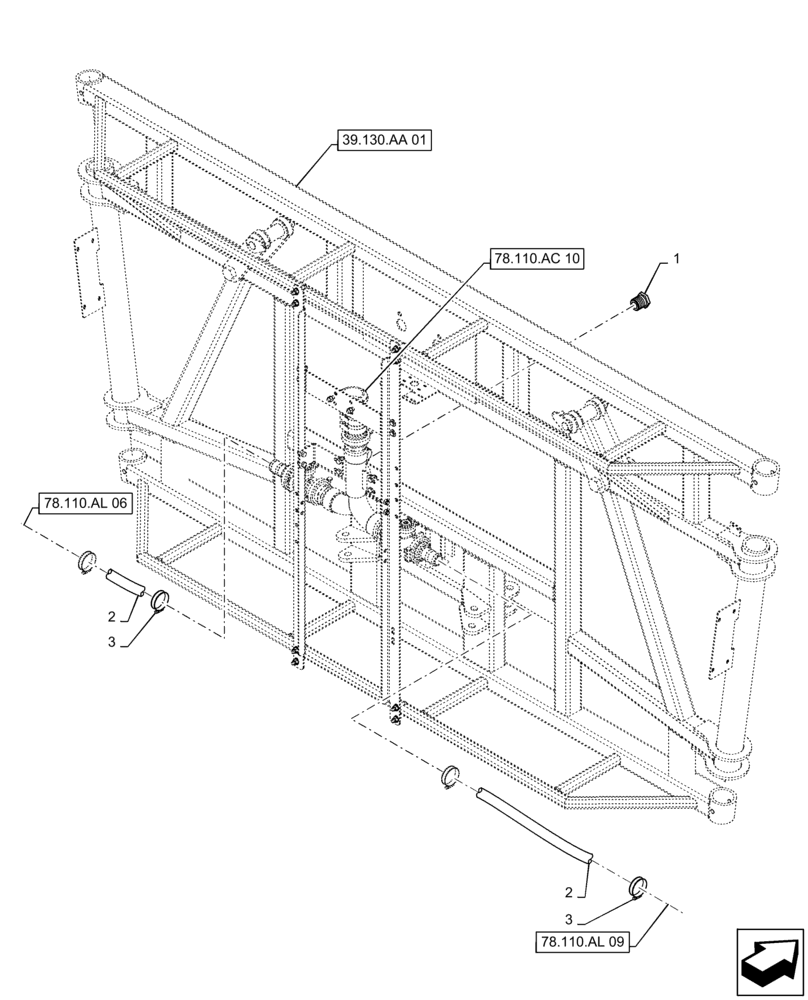

Схема запчастей Case IH PATRIOT 3340 - (78.110.AL[07]) - 90/100, 6 SECTION, CENTER BOOM PLUMBING (78) - SPRAYING
78.110.al 09
2
3
3
2
78.110.ac 10
78.110.al 06
39.130.aa 01
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73604

PLUG,1" Poly Pipe Plug

1" NPT, Pipe Poly

1шт.

2

BN53842

HOSE,38.10 mm ID Bulk

1 - 1/2" EPDM

1шт.

3

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

Выбрано товаров: 3
