(78.110.AL[04]) - 90, 5 SECTION, RH, INNER BOOM PLUMBING

Запчасти Case IH PATRIOT 3340 (78.110.AL[04]) - 90, 5 SECTION, RH, INNER BOOM PLUMBING (78) - SPRAYING

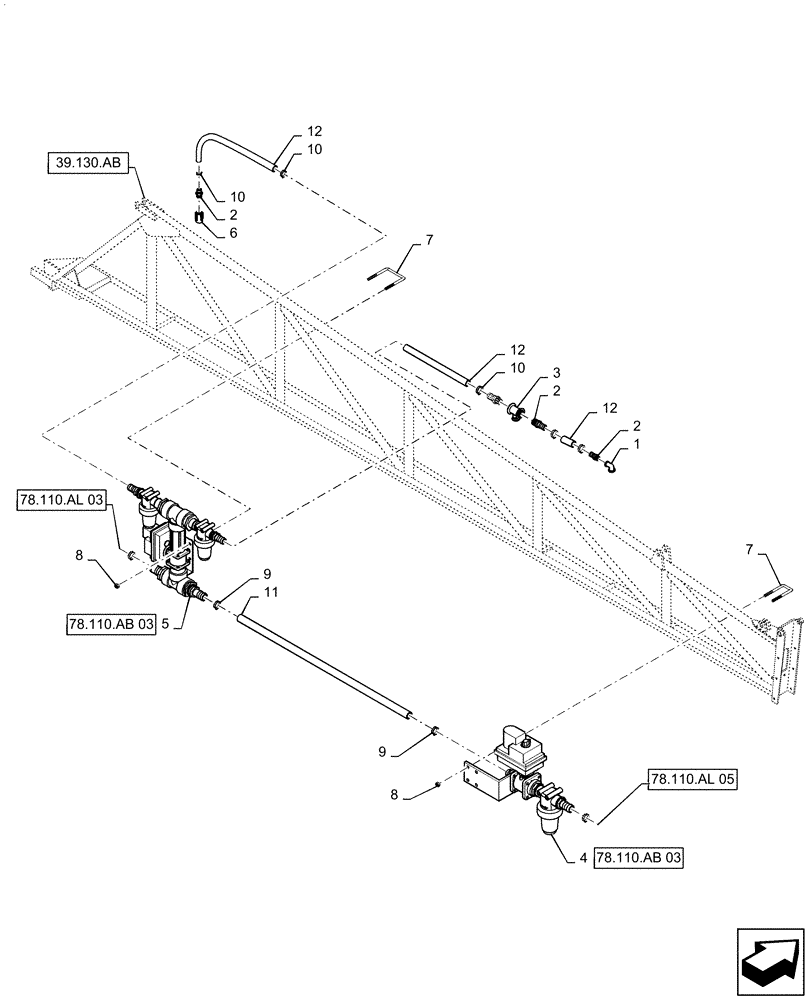

Схема запчастей Case IH PATRIOT 3340 - (78.110.AL[04]) - 90, 5 SECTION, RH, INNER BOOM PLUMBING (78) - SPRAYING
2
10
78.110.al 03
10
39.130.ab
8
9
3
12
12
9
5
2
78.110.al 05
4
12
78.110.ab 03
1
2
8
78.110.ab 03
10
7
11
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1 - 1/4" NPT, 90°

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1 - 1/4" NPT x 1" Hose Barb

4шт.

3

BN73662

TEE

1 - 1/4"

1шт.

4

BN321452

VALVE

Complete

1шт.

See 78.110.AB 03 For Service Parts

1шт.

5

BN321455

VALVE

Complete

1шт.

See 78.110.AB 04 For Service Parts

1шт.

6

BN305269

COUPLING

1 - 1/4" NPT

1шт.

7

BN319919

U-BOLT

Sq. Bend 2.06" ID x 3/8"

5шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

9

BN320156

HOSE CLAMP

#24, SST

2шт.

10

BN310447

HOSE CLAMP

#20, SST

6шт.

11

BN29563

HOSE

Bulk, 1 - 1/4" EPDM

1шт.

12

BN53479

HOSE,1.00" ID BULK

EPDM

1шт.
