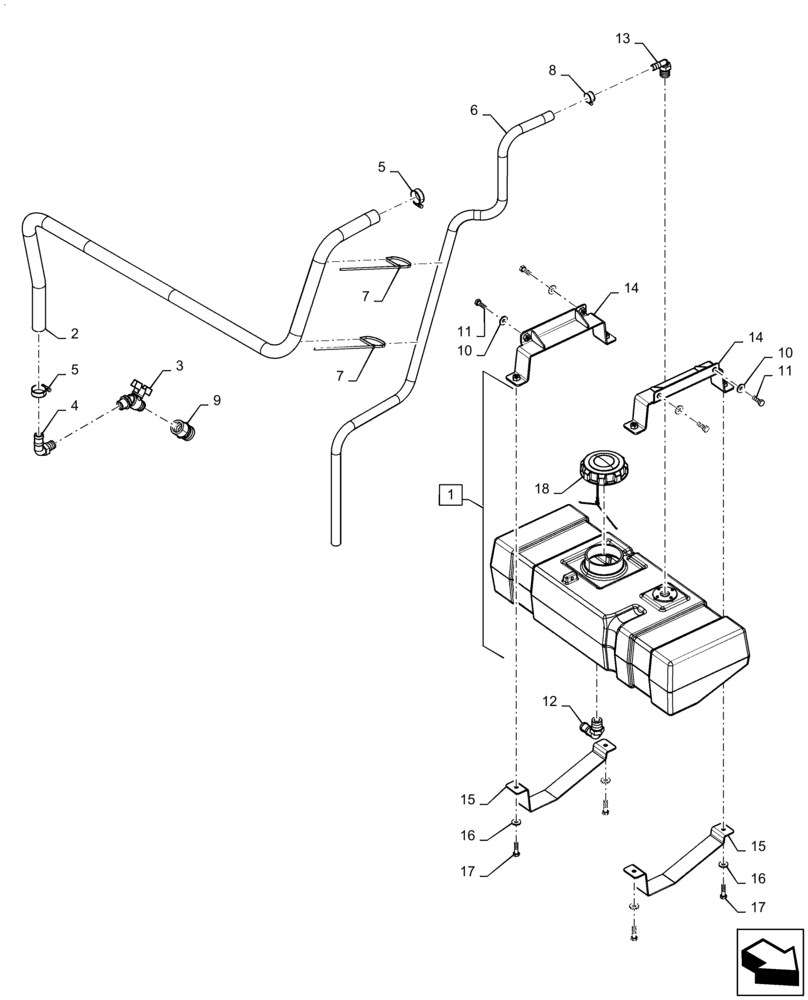

Запчасти Case IH PATRIOT 3340 (78.110.AH[05]) - PERSONAL RINSE TANK (78) - SPRAYING

1

47514651

TANK

15L, Incl, 18

1шт.

2

BN27905

HOSE,19.05mm ID x 304.8mm L

Bulk, 3/4" EPDM

1шт.

3

BN53817

DRAIN VALVE

1/2" NPT, Blue

1шт.

4

BN73519

ELBOW

1/2" MPT x 3/4" Hose Barb

1шт.

5

BN310446

HOSE CLAMP

#12 SST

2шт.

6

BN54239

HOSE,12.7mm ID x 3048mm L

Bulk, 1/2" EPDM

1шт.

7

BN570007

STRAP

14" Zip Tie

2шт.

8

BN324022

HOSE CLAMP

#8, SST

1шт.

9

47487717

COUPLING,Female, 3/4" GHT

1шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" MPT, x 3/4" Hose Barb

1шт.

13

BN73511

FITTING

1/2" MPT, x 1/2" Hose Barb

1шт.

14

47526879

MOUNT

Rinse Tank

2шт.

15

47526880

STRAP

Rinse Tank

2шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

17

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

18

47596906

CAP

Tank, Included in 1

1шт.
