(78.110.AG[04]) - CHEMIICAL INDUCTOR VALVE ASSY

Запчасти Case IH PATRIOT 3340 (78.110.AG[04]) - CHEMIICAL INDUCTOR VALVE ASSY (78) - SPRAYING

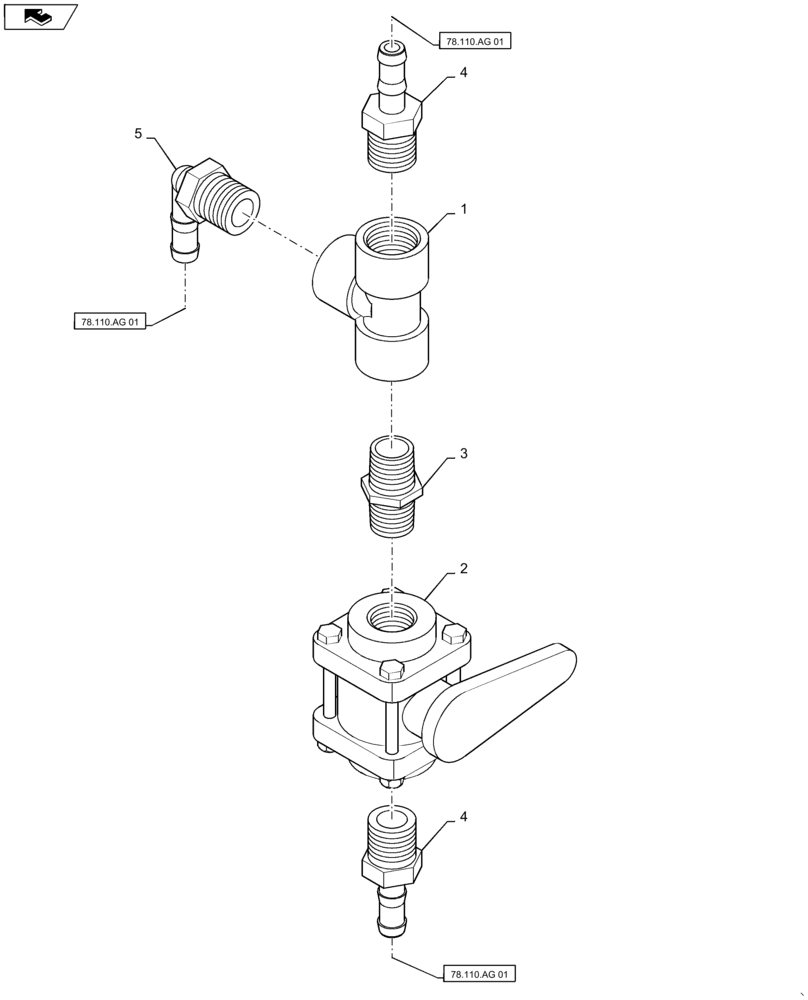

Схема запчастей Case IH PATRIOT 3340 - (78.110.AG[04]) - CHEMIICAL INDUCTOR VALVE ASSY (78) - SPRAYING
3
4
2
78.110.ag 01
78.110.ag 01
home
78.110.ag 01
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73560

TEE

3/4" Full Port, Poly

1шт.

2

BN73564

VALVE

3/4" Ball, Full Port, Poly

1шт.

3

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short, Poly

1шт.

4

BN73568

FITTING

3/4" x 1/2" Hose Barb, Poly

1шт.

5

BN73578

FITTING

3/4" x 1/2" Hose Barb, Poly

1шт.

Выбрано товаров: 5
