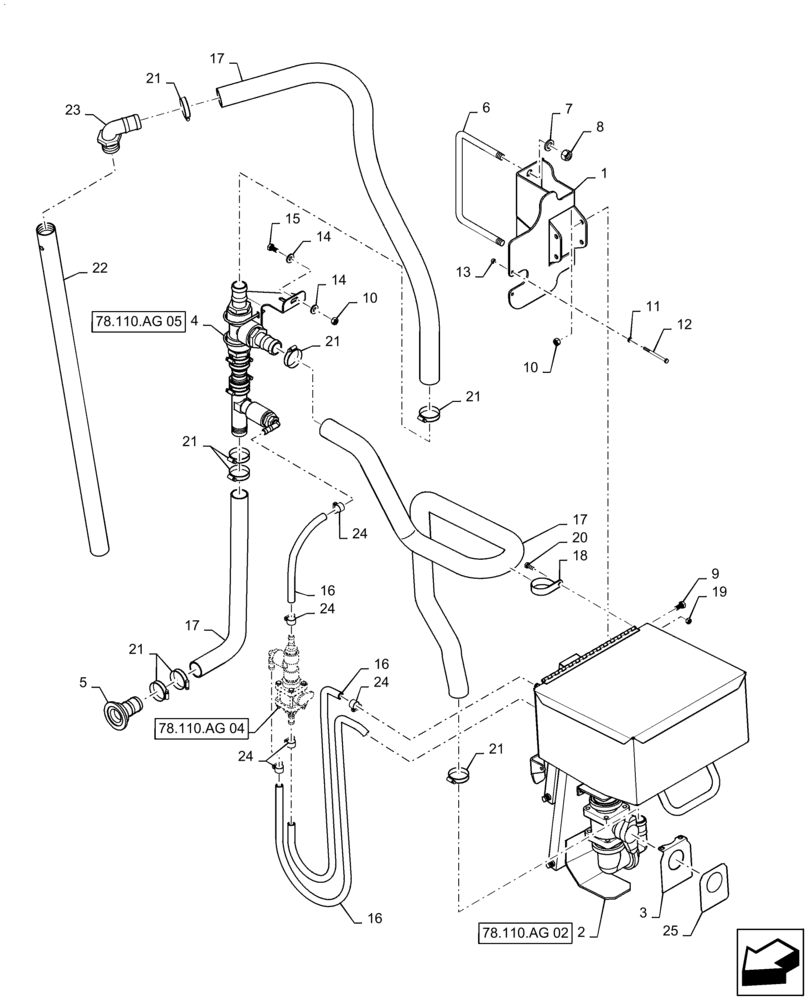

Запчасти Case IH PATRIOT 3340 (78.110.AG[01]) - CHEMICAL INDUCTOR (78) - SPRAYING

1

87271073

MOUNTING PLATE

Eductor

1шт.

2

BN324763

TANK

Chemical Inductor Tank, With Linkage

1шт.

See 78.110.AG 02

1шт.

3

BN320997

BRACKET

Decal Mount, SST

1шт.

4

BN324807

SERVICE KIT

Tee

1шт.

See 78.110.AG 05

1шт.

5

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

6

BN325918

U-BOLT

187 x 256mm

1шт.

7

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

9

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

11

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

12

86980369

BOLT,Hex, M6 x 80, Cl 8.8

2шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

15

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

16

BN54239

HOSE,12.7mm ID x 3048mm L

EPDM, Discharge, Bulk

1шт.

17

BN309785

HOSE

1 - 1/2", Bulk

1шт.

18

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

19

9991588

NUT,M8 x 1.25, Cl 8

1шт.

20

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

BN310448

HOSE CLAMP

#28, SST

8шт.

22

87272361

PLASTIC-RUBBER TUBE,38 mm ID x 48 mm OD x 1450 mm L

1шт.

23

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

24

87487826

CLAMP,0.44" - 0.78"

Hose, SST

6шт.

25

343187A1

DECAL

Chemical Inductor

1шт.

25

84212153

DECAL

Chemical Inductor, Chinese

1шт.
