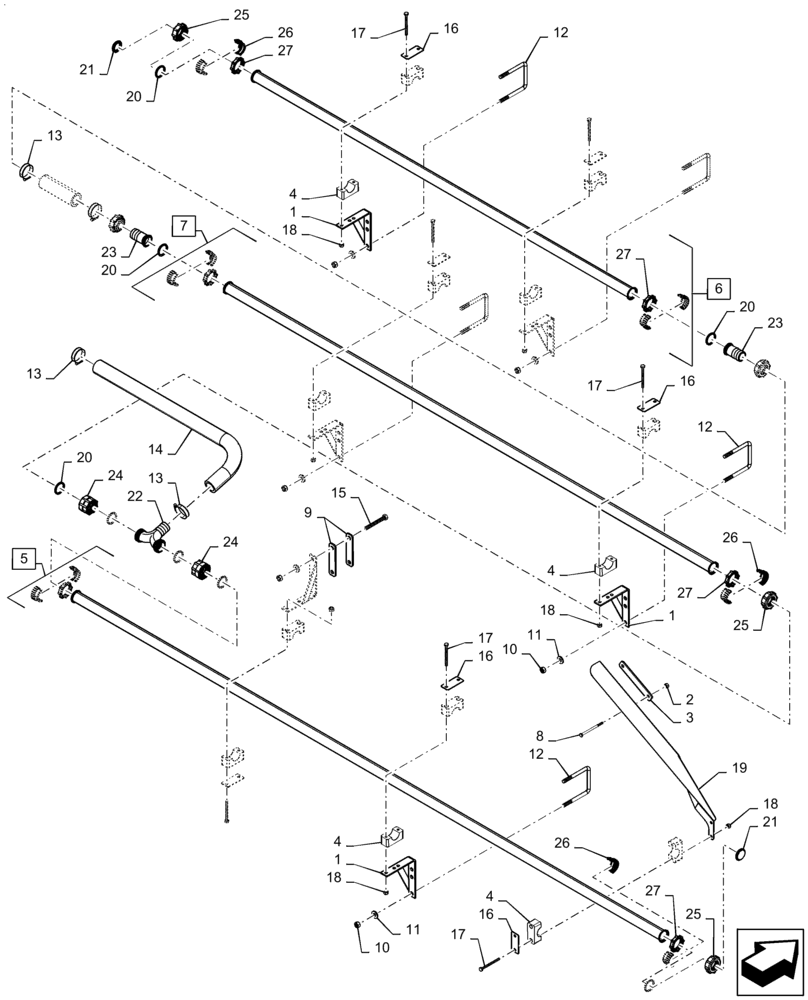

Запчасти Case IH PATRIOT 3340 (78.110.AE[35.1]) - SPRAYBAR, 120, 7 SECTION, 20"/30" SPACING, RH INNER BOOM, ASN YFT041643 (78) - SPRAYING

1

84490175

MOUNT

Spraybar

7шт.

2

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

3

87673096

STRAP

Backer, 4 - 1/2” Tube

1шт.

4

BN67054

CLAMP

1.315" OD

8шт.

5

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20" / 30" Nozzle Spacing, 105 -1/2" Long, Incl 25 - 27

1шт.

6

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20" / 30" Nozzle Spacing, 64 -1/2" Long, Incl 25 - 27

1шт.

7

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20" / 30" Nozzle Spacing, 84 -1/2" Long, Incl 25 - 27

1шт.

8

86980370

BOLT,Hex, M6 x 90mm, Cl 8.8

DOR

2шт.

9

87484194

PLATE

Backer, Spraybar Mount

7шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

14шт.

12

47654099

U-BOLT

M10, Square, DOR

6шт.

13

BN320156

HOSE CLAMP

#24, SST

4шт.

14

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

15

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

DOR

2шт.

16

BN309483

PLATE

Clamp Top, Single Clamp

8шт.

17

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

16шт.

18

BN55359

LOCK NUT,1/4"-20, SS

16шт.

19

84542725

MOUNT

Spraybar, Extended, RH

1шт.

20

84181302

SEALING RING

Spraybar

6шт.

21

87630099

PLUG,1" SST

Flange Cap For Spraybar

2шт.

22

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End, 1 - 1/4" Female NPT, With O - Ring Flange

1шт.

23

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1 - 1/4" Hose Barb

3шт.

24

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupler, 1 - 1/4" FPT x 1 - 1/4" Acme

2шт.

25

87630105

NUT

Nut, Quick, Spraybar

6шт.

26

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

6шт.

27

87630103

FITTING

Binding Ring, Spraybar

6шт.
