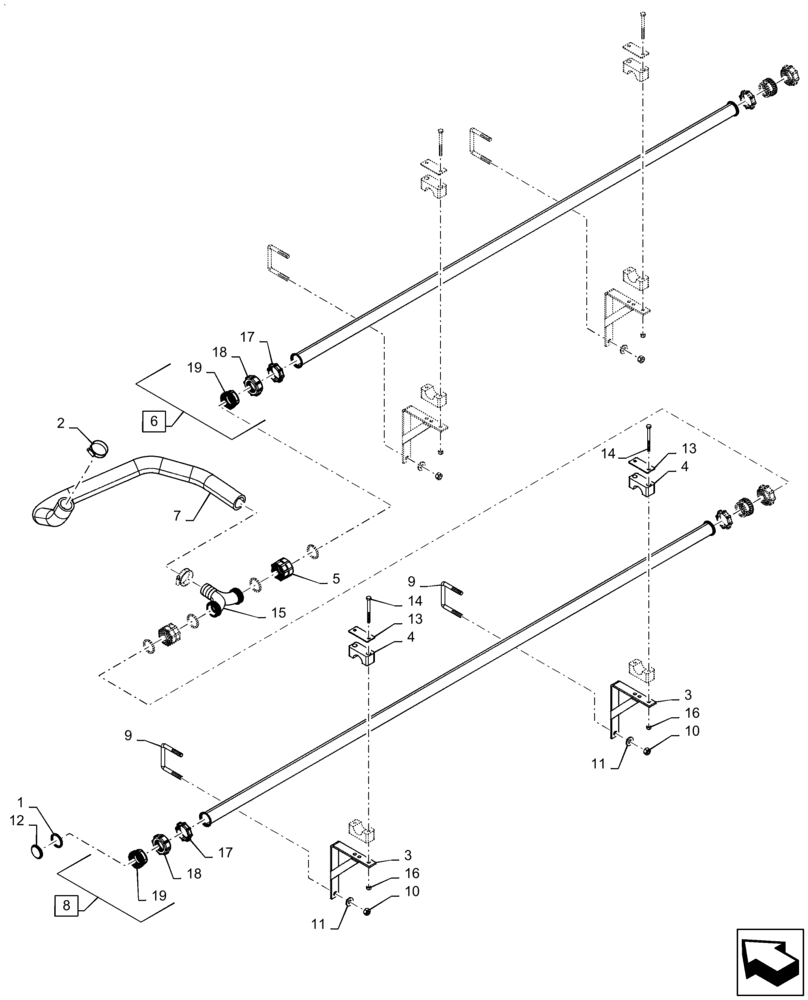

Запчасти Case IH PATRIOT 3340 (78.110.AE[34]) - SPRAYBAR, 120, 7 SECTION, 20"/30" SPACING, CENTER SECTION (78) - SPRAYING

1

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

6шт.

2

BN320156

HOSE CLAMP

#24, SST

2шт.

3

84511418

MOUNT

Spraybar, Center Section

4шт.

4

BN67054

CLAMP

Spraybar

4шт.

5

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, 1 - 1/4" FPT x 1 - 7/8" O Ring Flange, Acme

2шт.

6

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, Incl 17 - 19

1шт.

7

BN29563

HOSE

Bulk 1.25" EPDM, Discharge, 16' Roll

1шт.

8

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, Incl 17 - 19, Serial Range: -YGT044000

1шт.

8

47919024

SPRAYBAR

74 1/2", 8 Holes, 20/30" Spacing, Incl 17 - 19, Start Serial: YGT044001

1шт.

9

87586548

U-BOLT

Square, M10 x 64mm ID x 64mm

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

8шт.

12

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

2шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

15

87630101

FITTING,Tee, PP

1 - 1/4" MPT x 1 - 1/4" MPT x 1 - 1/4 Hose Barb

1шт.

16

BN55359

LOCK NUT,1/4"-20, SS

8шт.

17

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

18

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

19

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.
