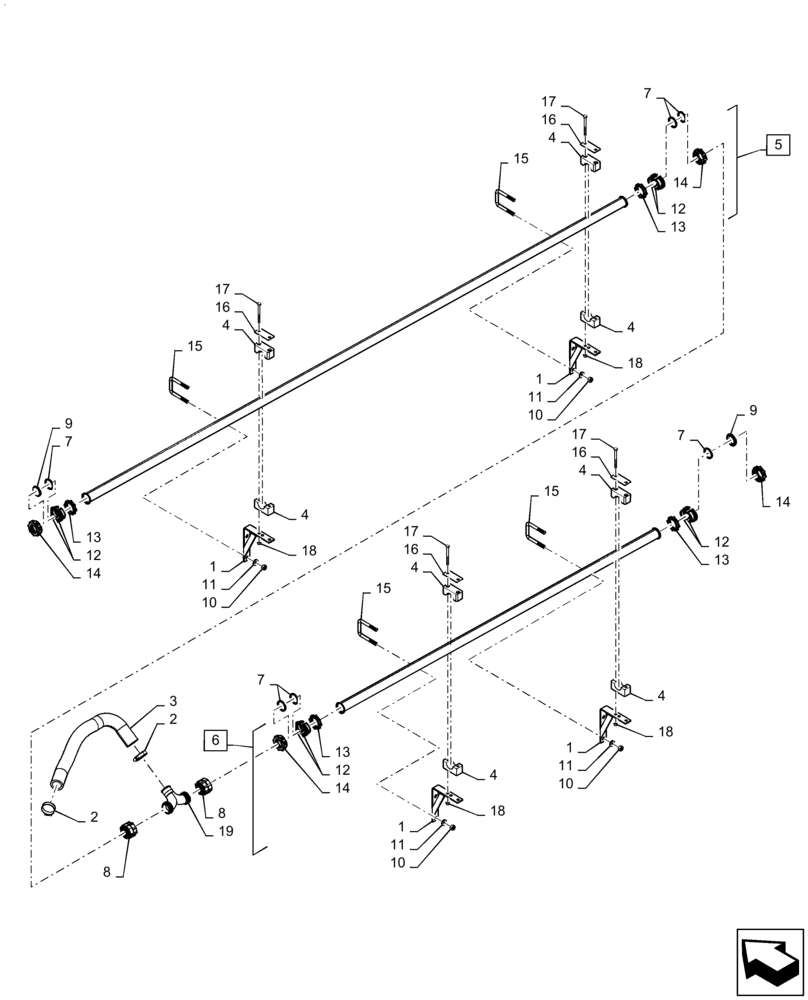

Запчасти Case IH PATRIOT 3340 (78.110.AE[32.1]) - SPRAYBAR, 120, 7 SECTION, 20"/30" SPACING, LH MID BOOM, ASN YFT041643 (78) - SPRAYING

1

84490175

MOUNT

Spraybar

4шт.

2

BN320156

HOSE CLAMP

#24, SST

2шт.

3

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

4

BN67054

CLAMP

1.315" OD

8шт.

5

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20" / 30" Nozzle Spacing, 105-1/2" Long, Incl 12 - 14

1шт.

6

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20" / 30" Nozzle Spacing, 64-1/2" Long, Incl 12- 14

1шт.

7

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

4шт.

8

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1 - 1/4" FPT x Female Acme

2шт.

9

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

2шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

12

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

13

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

14

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

15

47650282

U-BOLT

M 10, Square

4шт.

16

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

17

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

18

BN55359

LOCK NUT,1/4"-20, SS

8шт.

19

87630101

FITTING,Tee, PP

1 - 1/4" MPT x 1 - 1/4" MPT x 1 - 1/4" HB

1шт.
