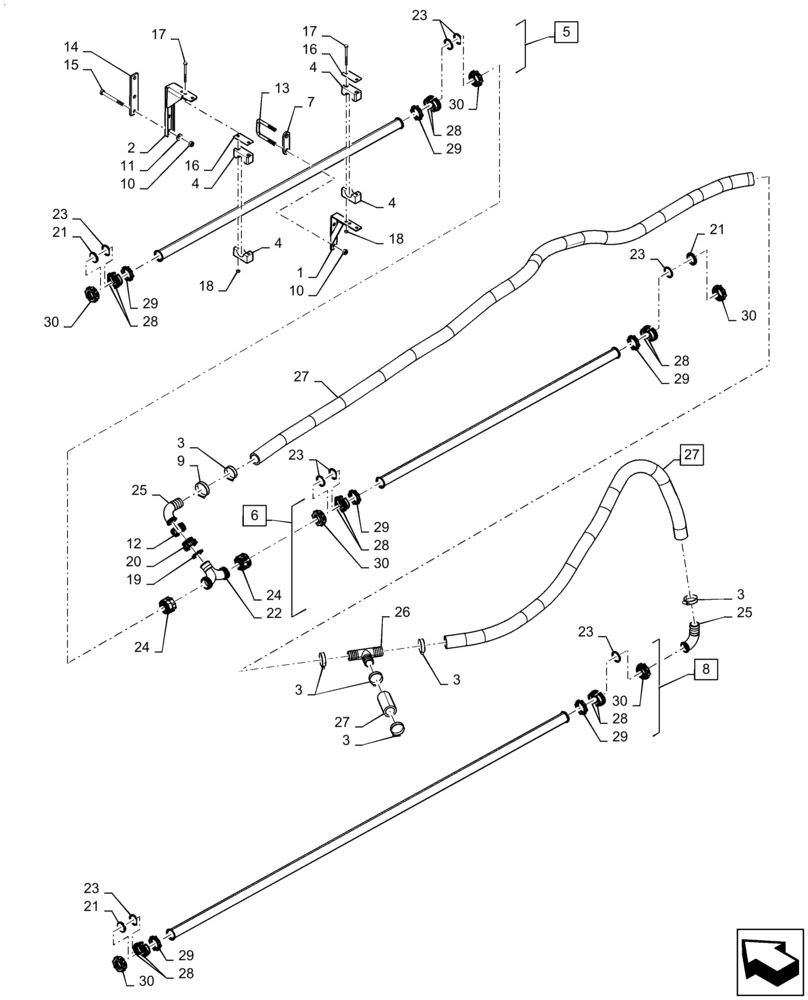

Запчасти Case IH PATRIOT 3340 (78.110.AE[31.1]) - SPRAYBAR, 120, 7 SECTION, 20"/30" SPACING, LH OUTER AND BREAKAWAY, ASN YFT041643 (78) - SPRAYING

1

84490175

MOUNT

Spraybar, With Angle Brace

4шт.

2

84490178

MOUNT

Spraybar, With Gusset Brace

2шт.

3

BN320156

HOSE CLAMP

#24, SST

3шт.

4

BN67054

CLAMP

Incl Top And Bottom Halves

6шт.

5

47735875

SPRAYBAR,45-1/2" Long, 3 Holes, 20/30" Nozzle Spacing

Spraybar, 3 Nozzles, 20"/30" Nozzle Spacing, 45 -1/2" Long, Breakaway, Incl 28 - 30

1шт.

6

47735876

SPRAYBAR,44-1/2" Long, 4 Holes, 20/30" Nozzle Spacing

Spraybar, 4 Nozzles, 20"/30" Nozzle Spacing, 44-1/2" Long, Breakaway, Incl 28 - 30

1шт.

7

47654165

SPACER

U Bolt

2шт.

8

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 74-1/2" Long, Outer Boom, Incl 28 - 30

1шт.

9

BN310448

HOSE CLAMP

#28, SST

1шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

24шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

12

47739888

FITTING,1” QN SST Tube End Adapter (1.315” O.D.)

Quick Nut Female Adapter

1шт.

13

47650282

U-BOLT

Square, M10

3шт.

14

87707554

BRACKET, SUPPORTING

Backer, Spraybar

2шт.

15

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

6шт.

16

BN309483

PLATE

Clamp Top, Single Clamp

5шт.

17

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

10шт.

18

BN55359

LOCK NUT,1/4"-20, SS

10шт.

19

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

20

47739890

FITTING,QN Sweep Tee

Quick Nut, Male Adapter

1шт.

21

87630099

PLUG,1" SST

Flange Cap For Spraybar

3шт.

22

47739843

BRANCH TEE,QN Sweep Tee - 1 1/4" Joint Adapter X 1" SST X 1" SST

1-1/4" Flange x Two 1-1/4" Male Pipe Thread

1шт.

23

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

8шт.

24

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End x 1 - 1/4" Female NPT, With O - Ring Flange

2шт.

25

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1 - 1/4" Hose Barb

2шт.

26

BN317579

TEE

Hose Barb, 1 - 1/4"

1шт.

27

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

28

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

29

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

30

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.
