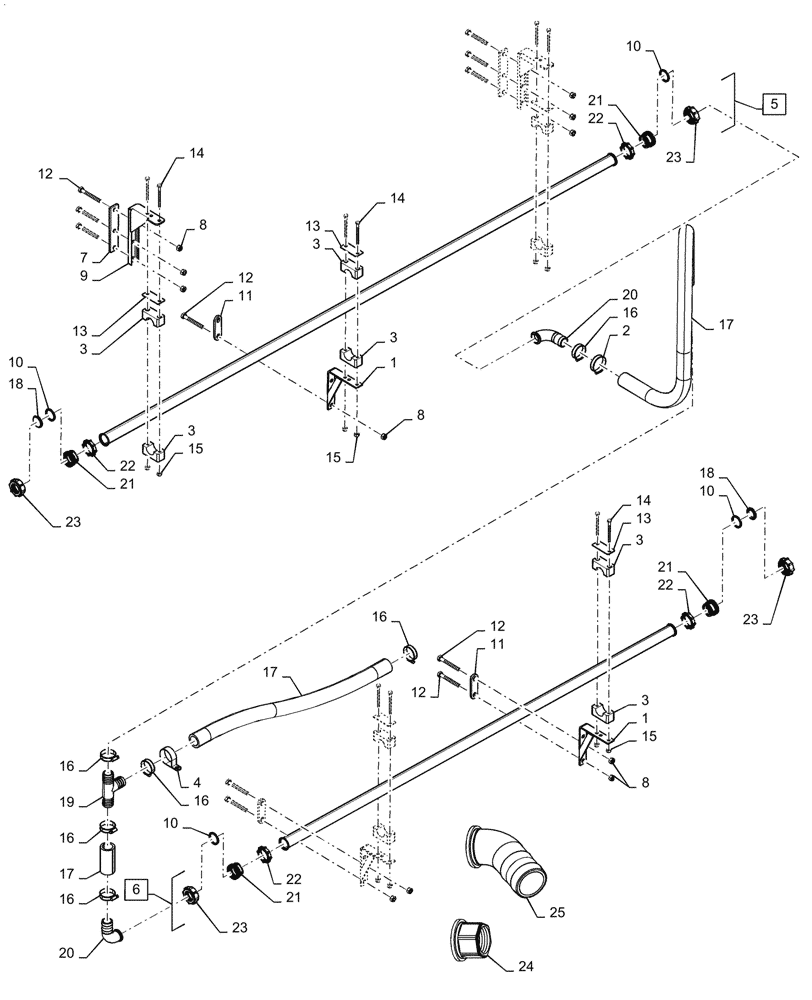

Запчасти Case IH PATRIOT 3340 (78.110.AE[31]) - SPRAYBAR, 120, 7 SECTION, 20"/30" SPACING, LH OUTER AND BREAKAWAY, BSN YFT041644 (78) - SPRAYING

1

84490175

MOUNT

Spraybar

3шт.

2

BN310448

HOSE CLAMP

#28, SST

2шт.

3

BN67054

CLAMP

Incl Top And Bottom Halves

8шт.

4

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

5

87696871

BOOM,95" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, Breakaway, Incl 21 - 23

1шт.

6

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, Outer Boom, Incl 21 - 23

1шт.

7

87707554

BRACKET, SUPPORTING

Backer, Spraybar

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

24шт.

9

84490178

MOUNT

Spraybar

4шт.

10

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

8шт.

11

BN308039

PLATE

Spacer

6шт.

12

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

8шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

10шт.

15

BN55359

LOCK NUT,1/4"-20, SS

10шт.

16

BN320156

HOSE CLAMP

#24, SST

4шт.

17

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

18

87630099

PLUG,1" SST

Flange Cap For Spraybar

4шт.

19

BN317579

TEE

Hose Barb, 1 - 1/4"

1шт.

20

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1 - 1/4" Hose Barb

2шт.

21

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

22

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

23

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

24

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1" Flange x 3/4" Female NPT, Poly

1шт.

25

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1" Flange x 1-1/4" Hose Barb, Poly

1шт.
