(78.110.AE[27]) - SPRAYBAR, 120, 7 SECTION, 20" SPACING, CENTER

Запчасти Case IH PATRIOT 3340 (78.110.AE[27]) - SPRAYBAR, 120, 7 SECTION, 20" SPACING, CENTER (78) - SPRAYING

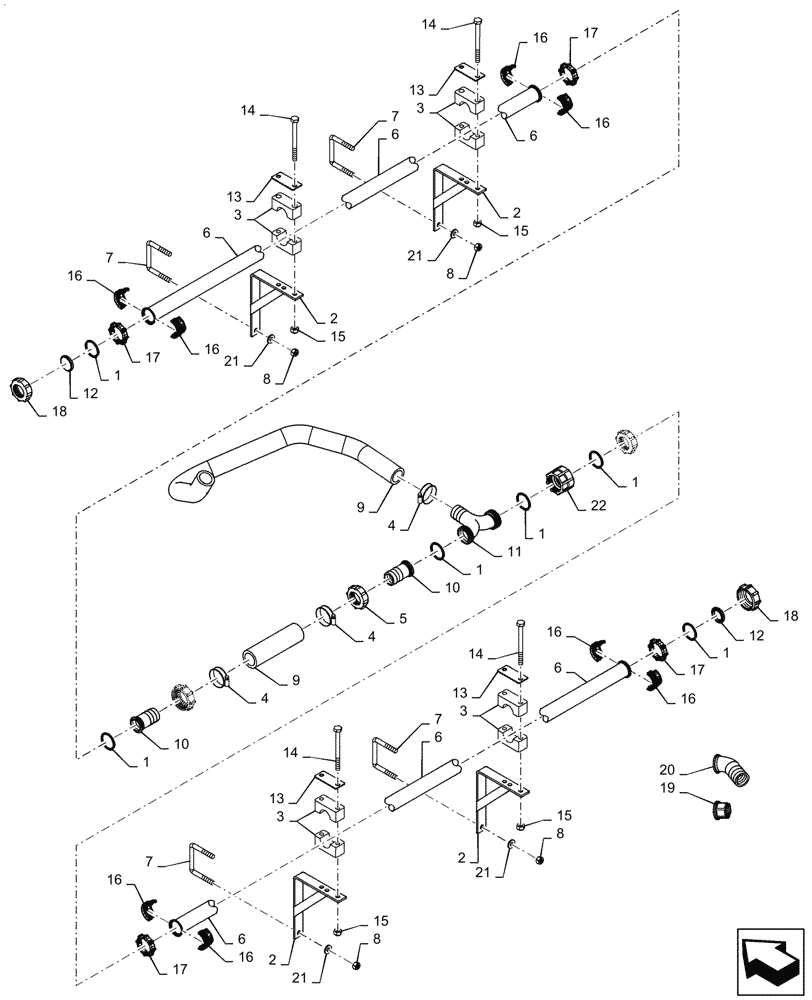

Схема запчастей Case IH PATRIOT 3340 - (78.110.AE[27]) - SPRAYBAR, 120, 7 SECTION, 20" SPACING, CENTER (78) - SPRAYING
16
9
22
6
13
18
17
16
3
14
14
16
12
16
8
13
17
21
13
7
14
15
4
8
4
5
7
3
21
15
6
6
12
3
10
6
15
1
7
16
2
6
21
2
13
19
7
17
10
2
14
1
20
15
16
1
1
2
16
21
9
6
17
1
8
1
11
3
18
16
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

8шт.

2

84511418

MOUNT

Spraybar, Center Section

4шт.

3

BN67054

CLAMP

1.315" OD

4шт.

4

BN320156

HOSE CLAMP

#24, SST

6шт.

5

87638736

FITTING,QN 1" - Nut

Nut, Quick, 1 - 1/4" NPT, Poly

1шт.

6

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, Incl 16 - 18

2шт.

7

87586548

U-BOLT

Square, M10 x 64mm ID x 64mm

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

9

BN29563

HOSE

Bulk 1.25" EPDM, Discharge, 16' Roll

1шт.

10

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1 - 1/4" Hose Barb, Poly

4шт.

11

87630101

FITTING,Tee, PP

1 - 1/4" MPT x 1 - 1/4" MPT x 1 - 1/4 Hose Barb

1шт.

12

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

2шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

15

BN55359

LOCK NUT,1/4"-20, SS

8шт.

16

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

17

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

18

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

19

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1" Flange x 3/4" Female NPT, Poly, Available Additional Fitting

1шт.

20

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1" Flange x 1 - 1/4" Hose Barb, Poly, Availabe Additional Fitting

1шт.

21

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

Coupler, 1 - 1/4" FPT x 1 - 1/4" Acme

8шт.

22

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1шт.
