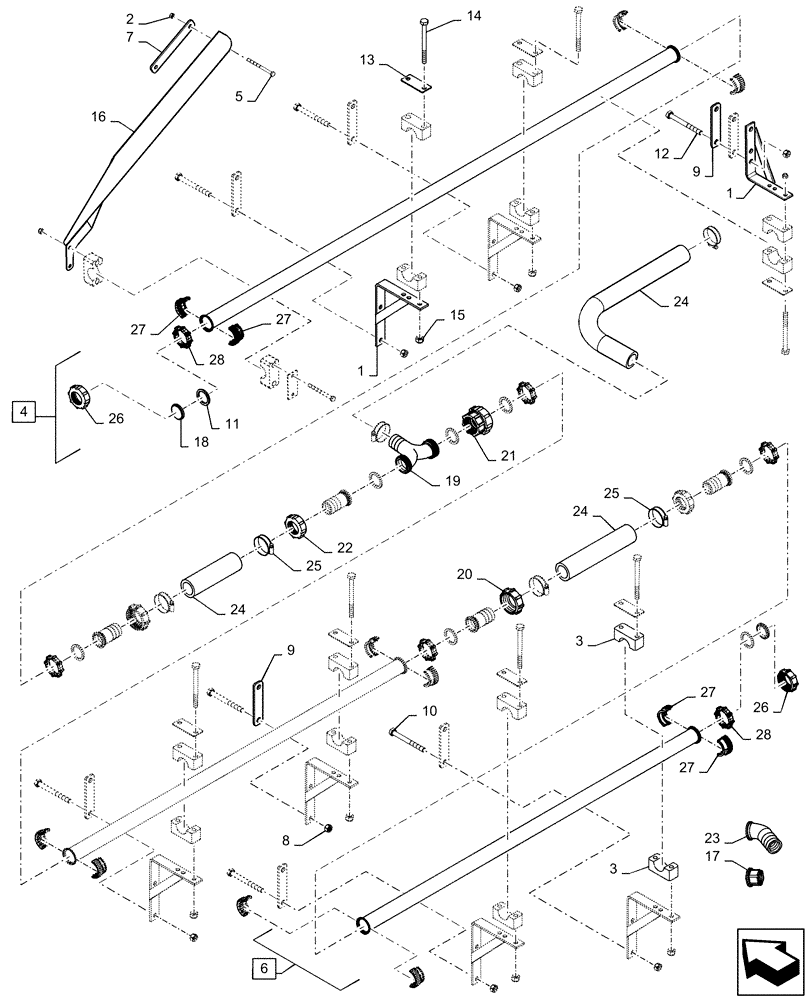

Запчасти Case IH PATRIOT 3340 (78.110.AE[26]) - SPRAYBAR, 120, 7 SECTION, 20" SPACING, LH INNER BOOM (78) - SPRAYING

1

84490175

MOUNT

Spraybar

7шт.

2

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

3

BN67054

CLAMP

1.315" OD

8шт.

4

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long, Incl 26 - 28

1шт.

5

86980370

BOLT,Hex, M6 x 90mm, Cl 8.8

M6 - 1 x 90mm, 8.8, DOR

2шт.

6

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, 4 Nozzles, 20" Nozzle Spacing, 65" Long, Incl 26 - 28

2шт.

7

87673096

STRAP

Backer, 4 - 1/2” Tube

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

9

87484194

PLATE

Backer, Spraybar Mount

7шт.

10

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 - 1.5 x 100mm, 8.8, DOR

12шт.

11

84181302

SEALING RING

Spraybar

2шт.

12

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

10шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

16шт.

15

BN55359

LOCK NUT,1/4"-20, SS

16шт.

16

84542723

MOUNT

Spraybar, Extended, LH

1шт.

17

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1" Flange x 3/4" Female NPT, Poly, Available Additional Fitting

1шт.

18

87630099

PLUG,1" SST

Flange Cap For Spraybar

4шт.

19

87630101

FITTING,Tee, PP

1 - 1/4" MPT x 1 - 1/4" MPT x 1 - 1/4 Hose Barb

2шт.

20

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1 - 1/4" Hose Barb

3шт.

21

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End, 1 - 1/4" Female NPT, With O - Ring Flange

1шт.

22

87638736

FITTING,QN 1" - Nut

Nut, Quick, 1 - 1/4" NPT

2шт.

23

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1" Flange x 1 - 1/4" Hose Barb, Available Additional Fitting

1шт.

24

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

25

BN320156

HOSE CLAMP

#24, SST

10шт.

26

87630105

NUT

Nut, Quick, Spraybar

2шт.

27

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.

28

87630103

FITTING

Binding Ring, Spraybar

2шт.
