(78.110.AE[21]) - SPRAYBAR, 100, 6 SECTION, LO FLOW, 20" SPACING, CENTER

Запчасти Case IH PATRIOT 3340 (78.110.AE[21]) - SPRAYBAR, 100, 6 SECTION, LO FLOW, 20" SPACING, CENTER (78) - SPRAYING

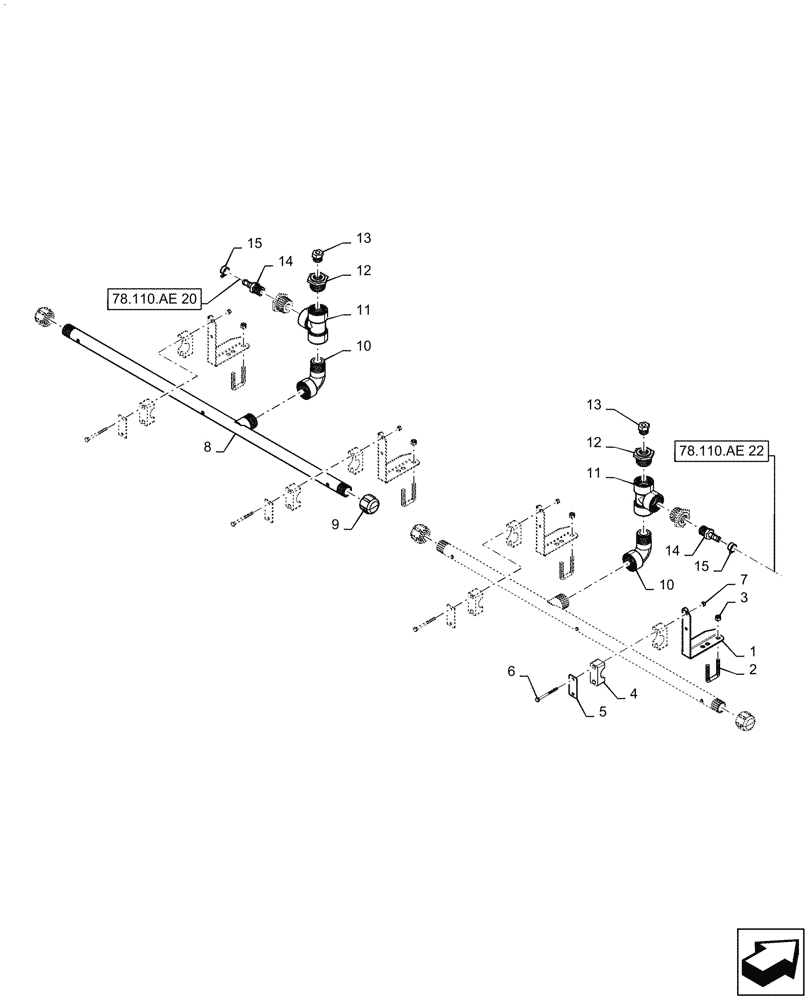

Схема запчастей Case IH PATRIOT 3340 - (78.110.AE[21]) - SPRAYBAR, 100, 6 SECTION, LO FLOW, 20" SPACING, CENTER (78) - SPRAYING
78.110.ae 20
13
10
5
15
9
3
15
11
8
14
6
4
14
2
7
10
12
13
11
1
12
78.110.ae 22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Spraybar Mount

4шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

Square Bend, 3/8" - 16 x 1.31" Wide x 2" Deep

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

BN67054

CLAMP

Incl Top and Bottom Halves

4шт.

5

BN309483

PLATE

Cover

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

2шт.

9

BN73606

CAP

1" NPT, Poly

4шт.

10

BN324890

ELBOW

1-1/4" MPT x 1-1/4" FPT

2шт.

11

BN73662

TEE

1-1/4" x 1-1/4" x 1-1/4"

2шт.

12

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

4шт.

13

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT

2шт.

14

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb

2шт.

15

BN324022

HOSE CLAMP

#8, SST

2шт.
