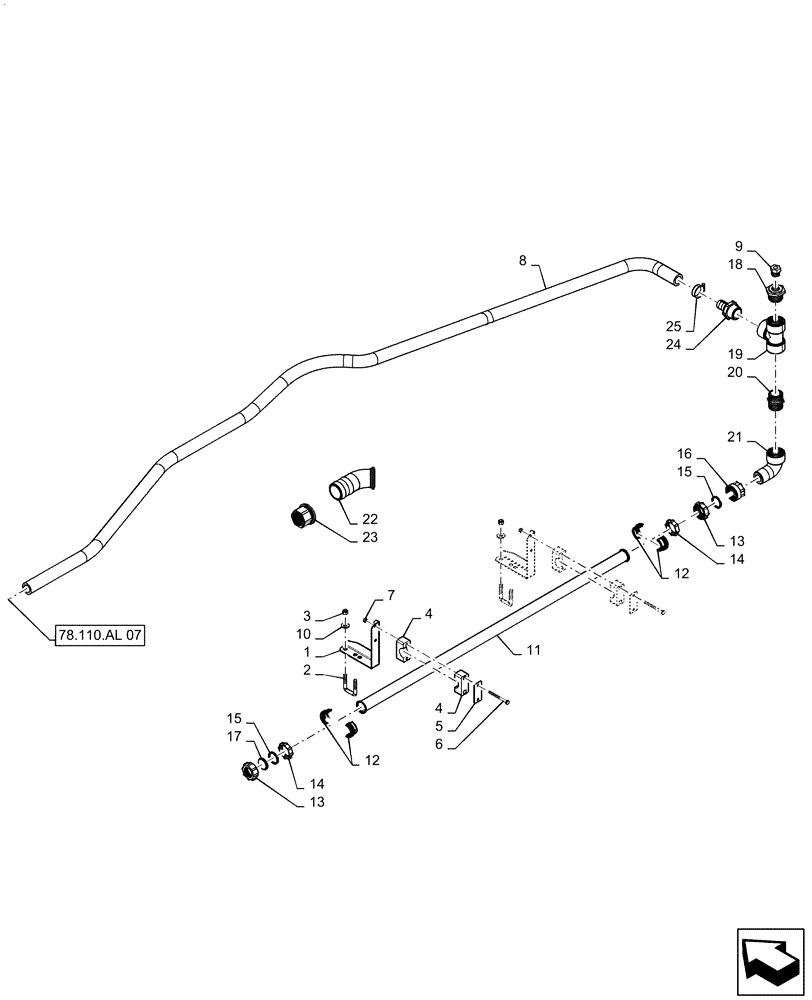

Запчасти Case IH PATRIOT 3340 (78.110.AE[14]) - SPRAYBAR, 90 AND 100, 6 SECTION, 20" SPACING, LH CENTER (78) - SPRAYING

1

BN323957

BRACKET

Spraybar, Center

2шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

3/8", Square

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

BN67054

CLAMP

1.315"

2шт.

5

BN309483

PLATE

Single Cover

2шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

7

BN55359

LOCK NUT,1/4"-20, SS

4шт.

8

BN53479

HOSE,1.00" ID BULK

1шт.

9

BN73550

BUSHING

Reducer, 3/4", MPT x 1/4", FPT

1шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

11

84159733

BOOM,20/30" Nozzle Spacing

Spraybar, 3 Hole, 20" Spacing, 44-1/2" Long

1шт.

12

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve

2шт.

13

87630105

NUT

Quick Nut

1шт.

14

87630103

FITTING

Binding Ring

2шт.

15

84181302

SEALING RING

Rectangular Profile, 1-5/16" x 1-9/16", CL 5

2шт.

16

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Spraybar Connector

1шт.

17

87630099

PLUG,1" SST

Flange Cap For Spraybar

1шт.

18

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" x 3/4"

1шт.

19

BN73662

TEE

1-1/4"

1шт.

20

BN73659

FITTING

1-1/4"

1шт.

21

BN324890

ELBOW

1-1/4", MPT x 1-1/4", FPT

1шт.

22

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

Boom Flange x Hose Barb

1шт.

23

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

Boom Flange x Reducer

1шт.

24

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4", MPT x 1", Hose Barb

1шт.

25

BN310447

HOSE CLAMP

#20 SST

1шт.
