Запчасти Case IH PATRIOT 3340 (78.110.AE[12]) - SPRAYBAR, 100, 6 SECTION, 20" SPACING, LH OUTER AND BREAKAWAY (78) - SPRAYING

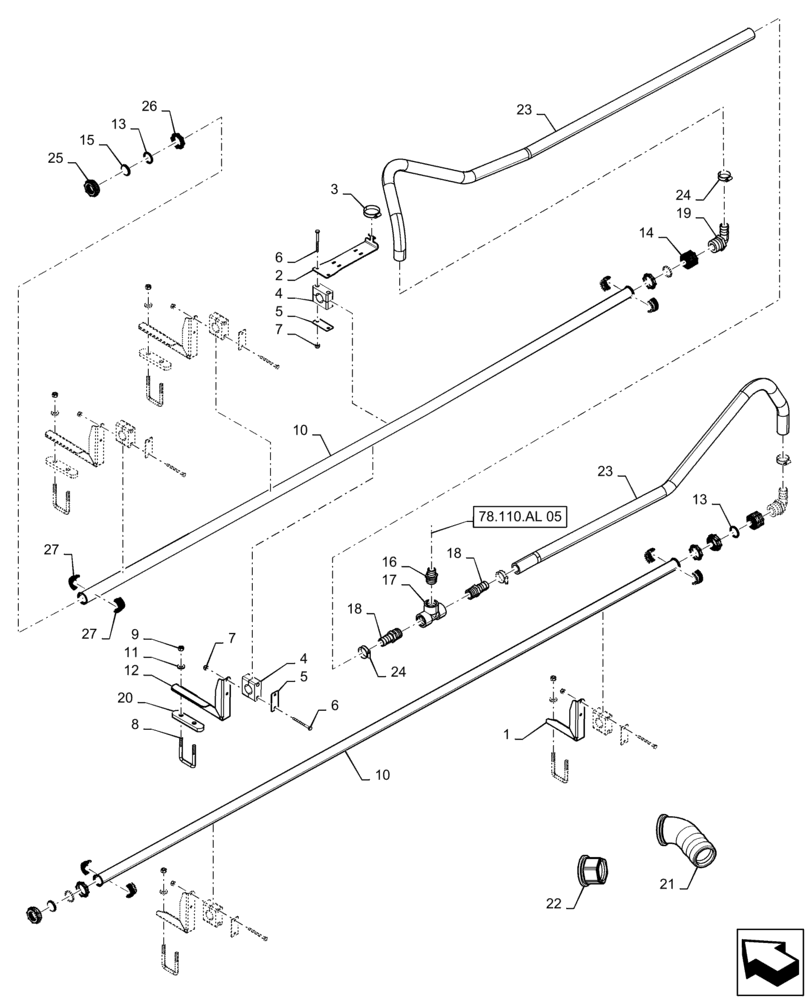

Схема запчастей Case IH PATRIOT 3340 - (78.110.AE[12]) - SPRAYBAR, 100, 6 SECTION, 20" SPACING, LH OUTER AND BREAKAWAY (78) - SPRAYING
9
1
4
23
4
2
10
25
23
24
14
10
22
27
24
12
78.110.al 05
19
6
8
11
18
13
13
17
3
6
26
7
15
16
5
7
21
27
18
20
5

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Spraybar Mount, Inner

2шт.

2

84265002

RETAINER

Hose

1шт.

3

BN310448

HOSE CLAMP

#28 SST

1шт.

4

BN67054

CLAMP

1.315" OD

6шт.

5

BN309483

PLATE

Top Cover

6шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

47650282

U-BOLT

Square, M10, 82mm Long x 62mm Wide

5шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

10

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Holes, 20" Spacing, 106" Long

2шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

12

84532753

MOUNT

Spraybar, Outer

3шт.

13

84181302

SEALING RING

1-5/16" x 1-9/16", CL 5, Rectangular Section

4шт.

14

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT

2шт.

15

87630099

PLUG,1" SST

Flange Cap For Spraybar

1шт.

16

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

Reducer, 1" MPT x 3/4" MPT

1шт.

17

BN73629

TEE

1" FPT

1шт.

18

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" MPT x 1" Hose Barb

2шт.

19

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb

2шт.

20

47654165

SPACER

U Bolt, Outer Spraybar Mount

3шт.

21

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1" Flange x 1-1/4" Hose Barb

1шт.

22

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1" Flange x 3/4"

1шт.

23

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

24

BN310447

HOSE CLAMP

#20 SST

4шт.

25

87630105

NUT

Quick Nut

1шт.

26

87630103

FITTING

Binding Ring

4шт.

27

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve

4шт.

Выбрано товаров: 27
