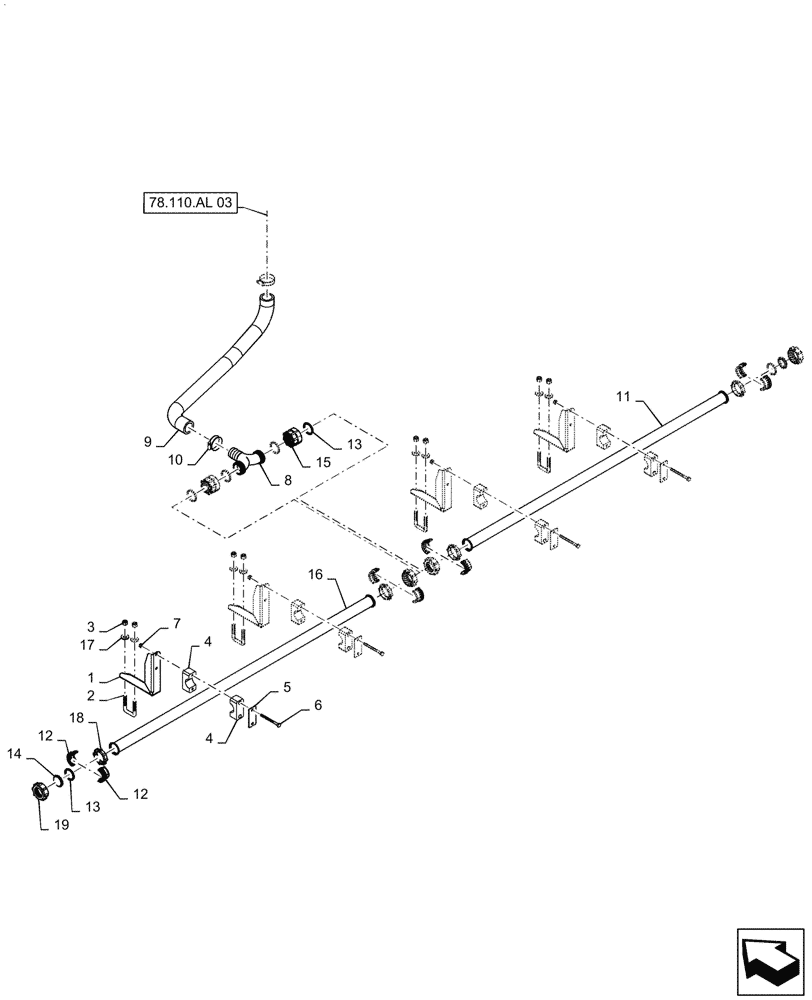

Запчасти Case IH PATRIOT 3340 (78.110.AE[08]) - SPRAYBAR, 90, 5 SECTION, 20/30" SPACING, CENTER (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

4шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

BN67054

CLAMP

1.315" OD

4шт.

5

BN309483

PLATE

Top

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4" Hose Barb

1шт.

9

BN29563

HOSE

1-1/4" ID Bulk

1шт.

10

BN320156

HOSE CLAMP

# 24, SST

2шт.

11

84226604

BOOM,20/30" Nozzle Spacing

Spraybar, 5 Nozzles, 20/30" Nozzle Spacing, 65-7/8" Long, Incl 12, 18, 19

1шт.

12

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

4шт.

13

84181302

SEALING RING

Rectangular, 1-5/16" x 1-9/16", Class 5

4шт.

14

87630099

PLUG,1" SST

Flange Cap For Spraybar

2шт.

15

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83" - 10 ACME

2шт.

16

84226601

BOOM,20/30" Nozzle Spacing

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, 55" Long, Incl 12, 18, 19, Serial Range: -YGT044000

1шт.

16

48071220

SPRAYBAR

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, 54" Long, Incl 12, 18, 19, Start Serial: YGT044001

1шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

18

87630103

FITTING

Binding Ring, Spraybar

4шт.

19

87630105

NUT

Nut, Quick, Spraybar

2шт.
