Запчасти Case IH PATRIOT 3340 (78.110.AE[07.1]) - SPRAYBAR, 90, 5 SECTION, 20/30" SPACING, LH INNER, ASN YGT042518 (78) - SPRAYING

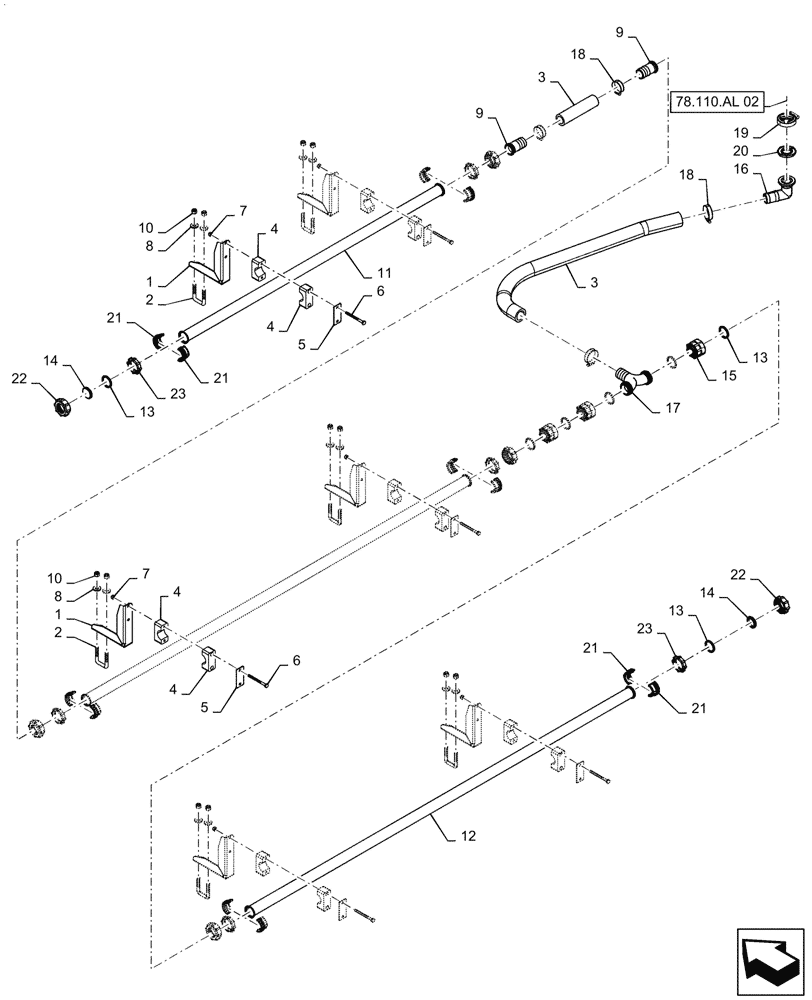

Схема запчастей Case IH PATRIOT 3340 - (78.110.AE[07.1]) - SPRAYBAR, 90, 5 SECTION, 20/30" SPACING, LH INNER, ASN YGT042518 (78) - SPRAYING
78.110.al 02
17
1
9
4
3
3
11
14
22
21
7
13
6
10
21
2
23
4
4
16
13
5
2
6
22
9
7
1
5
14
18
4
13
8
21
18
12
10
19
23
21
20
15
8

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Spraybar Mount

6шт.

2

47650282

U-BOLT

SQ Shape, M10 THD, 2" ID x 3-1/4" Deep

6шт.

3

BN29563

HOSE

1-1/4" Bulk

1шт.

4

BN67054

CLAMP

1.315" OD

6шт.

5

BN309483

PLATE

Top

6шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

9

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Flange x 1-1/4" Hose Barb

2шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

11

84226601

BOOM,20/30" Nozzle Spacing

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, 55" Long

1шт.

12

84226605

BOOM,20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long

2шт.

13

84181302

SEALING RING

Rectangular, 1-5/16" x 1-9/16" Class 5

4шт.

14

87630099

PLUG,1" SST

Flange Cap For Spraybar

2шт.

15

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83" - 10 ACME

4шт.

16

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

90°, 1" Flange x 1 1/4" Hose Barb

1шт.

17

87630101

FITTING,Tee, PP

Tee, 1-1/4" MPT x 1-1/4" MPT x 1-1/4" Hose Barb

1шт.

18

BN320156

HOSE CLAMP

#24

4шт.

19

BN303203

CLAMP,1" Flange

1" Flange

1шт.

20

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange

1шт.

21

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.

22

87630105

NUT

Nut, Quick, Spraybar

2шт.

23

87630103

FITTING

Binding Ring, Spraybar

2шт.

Выбрано товаров: 23
