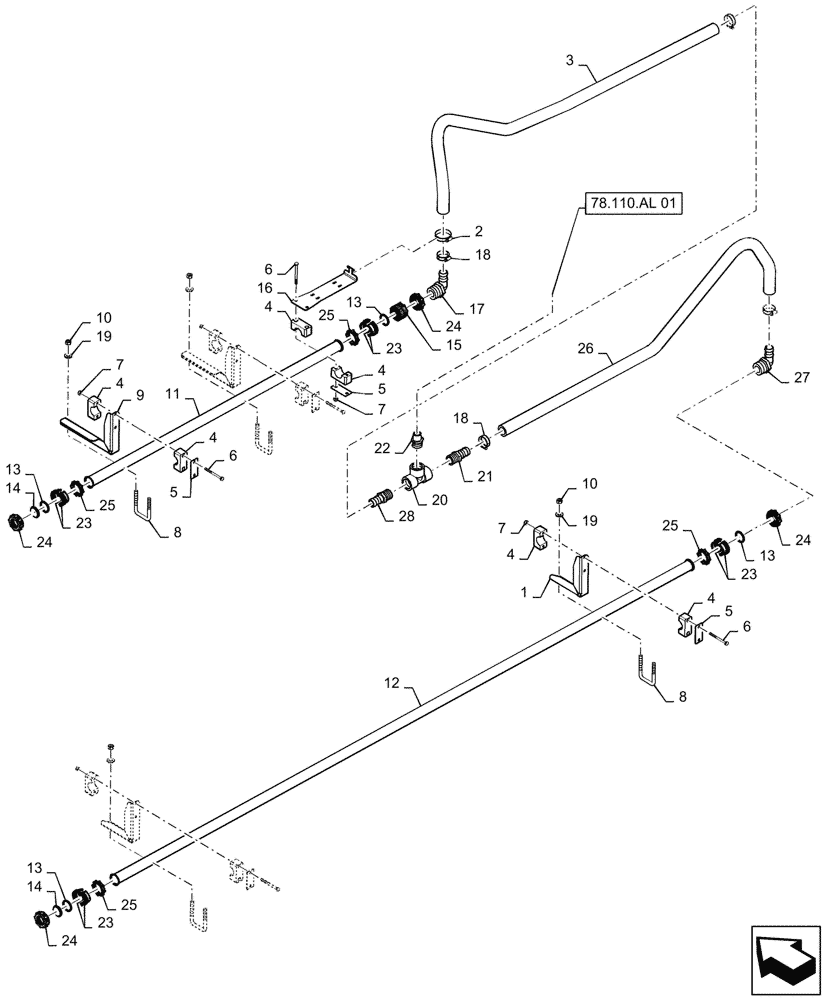

Запчасти Case IH PATRIOT 3340 (78.110.AE[06]) - SPRAYBAR, 90, 5 SECTION, 20/30" SPACING, LH OUTER AND BREAKAWAY, BSN YGT042519 (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

2шт.

2

BN310448

HOSE CLAMP

#28, SST

1шт.

3

BN53479

HOSE,1.00" ID BULK

1шт.

4

BN67054

CLAMP

1.315" OD

8шт.

5

BN309483

PLATE

Top

5шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

10шт.

7

BN55359

LOCK NUT,1/4"-20, SS

10шт.

8

47650282

U-BOLT

SQ Shape, M10 THD, 82L x 62W

4шт.

9

84532753

MOUNT

Spraybar

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

11

84226601

BOOM,20/30" Nozzle Spacing

Spraybar, 4 Nozzles, 20 / 30" Nozzle Spacing, 55" Long

1шт.

12

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar

1шт.

13

84181302

SEALING RING

Rectangular, 1-5/16 x 1-9/16 Class 5

2шт.

14

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

2шт.

15

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83 - 10 ACME

1шт.

16

84265002

RETAINER

Hose

1шт.

17

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb

1шт.

18

BN310447

HOSE CLAMP

#20

1шт.

19

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

20

BN73629

TEE

1" FPT

1шт.

21

BN321509

FITTING

1" MPT x 1-1/4" Hose Barb

1шт.

22

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

Reducer, 1" MPT x 3/4" MPT

1шт.

23

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.

24

87630105

NUT

Nut, Quick, Spraybar

2шт.

25

87630103

FITTING

Binding Ring, Spraybar

2шт.

26

BN29563

HOSE

1-1/4" Bulk

1шт.

27

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, Flange x 1-1/4" Hose Barb

1шт.

28

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb

1шт.
