Запчасти Case IH PATRIOT 3340 (78.110.AE[04]) - SPRAYBAR, 90, 5 SECTION, 20" SPACING, RH INNER, BSN YGT042519 (78) - SPRAYING

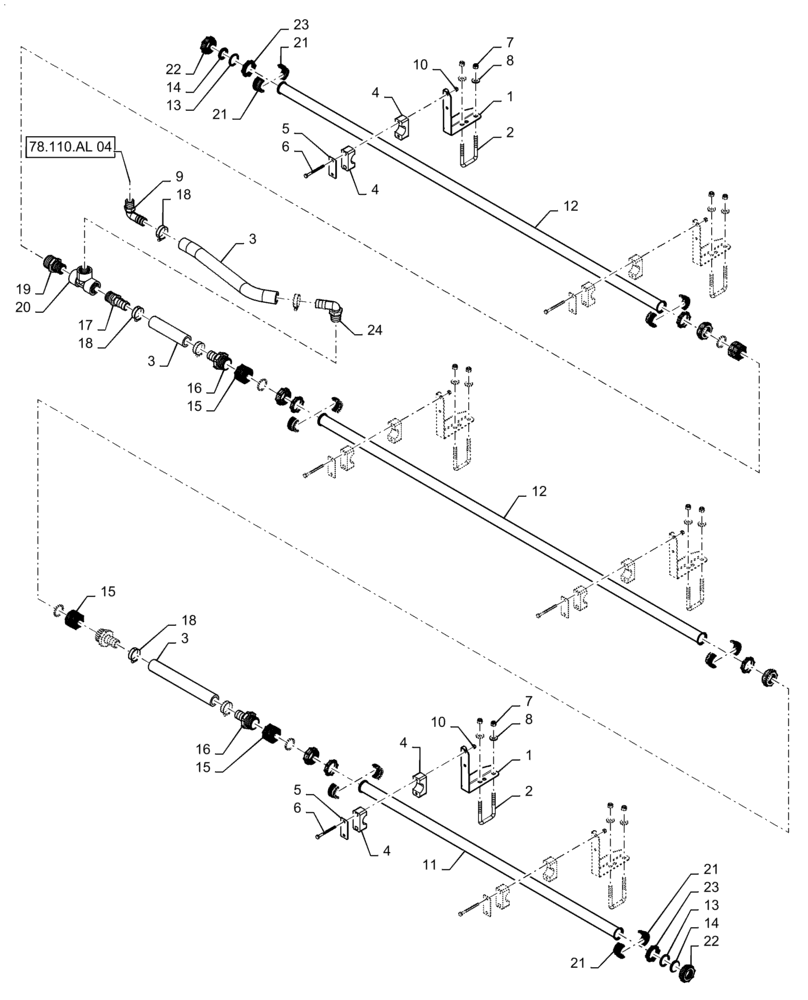

Схема запчастей Case IH PATRIOT 3340 - (78.110.AE[04]) - SPRAYBAR, 90, 5 SECTION, 20" SPACING, RH INNER, BSN YGT042519 (78) - SPRAYING
4
12
22
3
14
15
14
13
1
23
12
18
9
17
16
21
10
19
8
78.110.al 04
10
16
4
4
8
20
21
15
4
22
1
24
7
21
6
5
3
18
11
15
2
23
6
3
7
5
18
2
13
21

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Spraybar Mount

6шт.

2

47650282

U-BOLT

SQ Shape, M10 THD, 82L x 62W

6шт.

3

BN53479

HOSE,1.00" ID BULK

1шт.

4

BN67054

CLAMP

1.315" OD

6шт.

5

BN309483

PLATE

Top

6шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

9

134271C2

ELBOW,ELBOW, 90

90 Degree, 3/4" MPT x 1" Hose Barb

1шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

11

84159733

BOOM,20/30" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, 44-1/2" Long

1шт.

12

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long

2шт.

13

84181302

SEALING RING

Rectangular, 1-5/16" x 1-9/16" Class 5

2шт.

14

87630099

PLUG,1" SST

Flange Cap For Spraybar

2шт.

15

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83" - 10 ACME

4шт.

16

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb

2шт.

17

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb

1шт.

18

BN310447

HOSE CLAMP

#20

4шт.

19

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" x 1"

1шт.

20

BN73629

TEE

1" FPT

1шт.

21

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.

22

87630105

NUT

Nut, Quick, Spraybar

2шт.

23

87630103

FITTING

Binding Ring, Spraybar

2шт.

24

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb

1шт.

Выбрано товаров: 24
