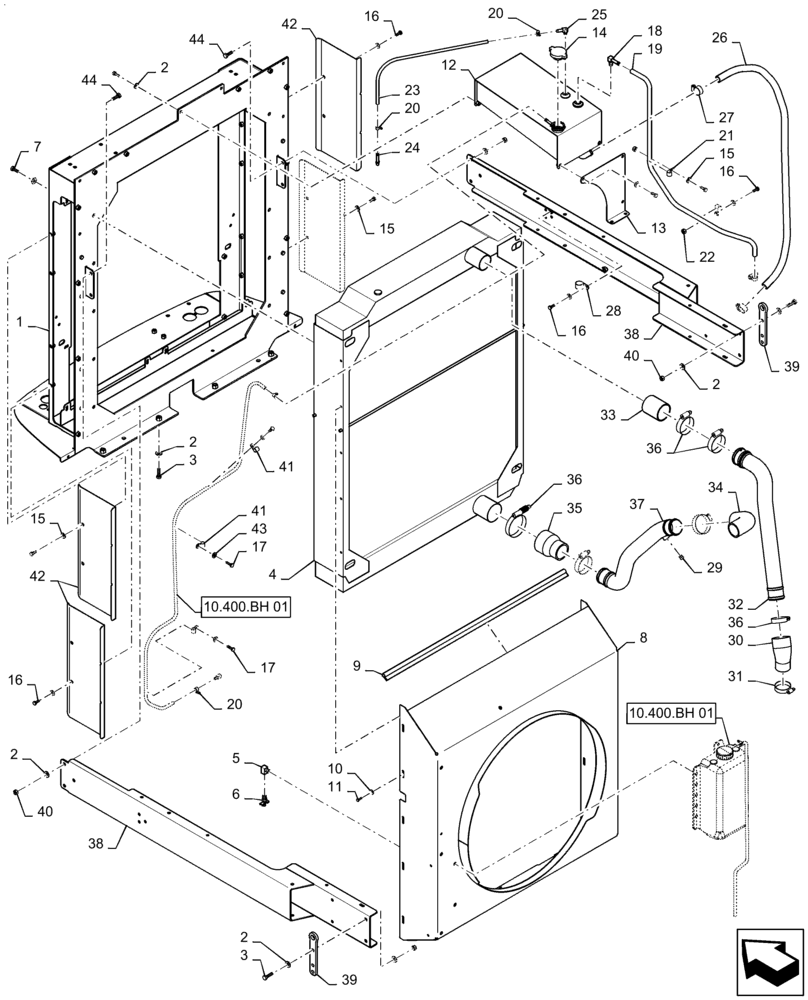

Запчасти Case IH PATRIOT 3340 (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE

1

84553458

MOUNT

Coolers

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

30шт.

3

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

4

87266225

RADIATOR

1шт.

5

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

1шт.

6

217-92

COCK

Drain

1шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

8

84553478

SHROUD

Fan

1шт.

9

84283473

SEAL

Front Baffle

2шт.

10

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

11

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

10шт.

12

87268122

TANK

Deaeration

1шт.

13

84554635

SUPPORT

Deaeration Tank

1шт.

14

A170241

RADIATOR CAP

15 PSI

1шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

19шт.

16

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

15шт.

17

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

18

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

19

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

Bulk, 3/8", Cut To 44-5/8"

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

21

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

23

BN306821

HOSE,0.75" ID, Bulk

Bulk, 3/4" Cut To 23-3/8"

1шт.

24

87301291

FITTING

5/16" HB To 1/8" NPTF

1шт.

25

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

1шт.

26

BN2293891

HOSE,0.75" ID

Bulk, 3/4", Cut To 45-1/2"

1шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

28

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

29

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

30

84553460

HOSE

Radiator Coupler / Reducer

1шт.

31

87485001

CLAMP,1.31" - 2.25"

Hose, # 28, SST

2шт.

32

84543658

TUBE

Upper Radiator

1шт.

33

87539189

FLEXIBLE HOSE,62.00 mm ID x 80.00 mm

1шт.

34

87270787

RADIATOR HOSE,49.00 mm ID, 57.00 mm ID x 100.00 mm, SAE J20, SAE 20R4 CLASS D1

1шт.

35

84325964

RADIATOR HOSE

Lower

1шт.

36

L115549

CLAMP,69.85mm - 92.08mm

Hose

6шт.

37

84543660

TUBE

Lower Radiator

1шт.

38

84553461

MOUNT

Side Rails

2шт.

39

47402225

LUG

Lifting

2шт.

40

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

41

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

42

47411541

COVER

Coolers

4шт.

43

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

44

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.
