(78.110.AD[04.1]) - CENTER SECTION MANIFOLD, 6 SEC LOW FLOW ASN YGT042518

Запчасти Case IH PATRIOT 3340 (78.110.AD[04.1]) - CENTER SECTION MANIFOLD, 6 SEC LOW FLOW ASN YGT042518 (78) - SPRAYING

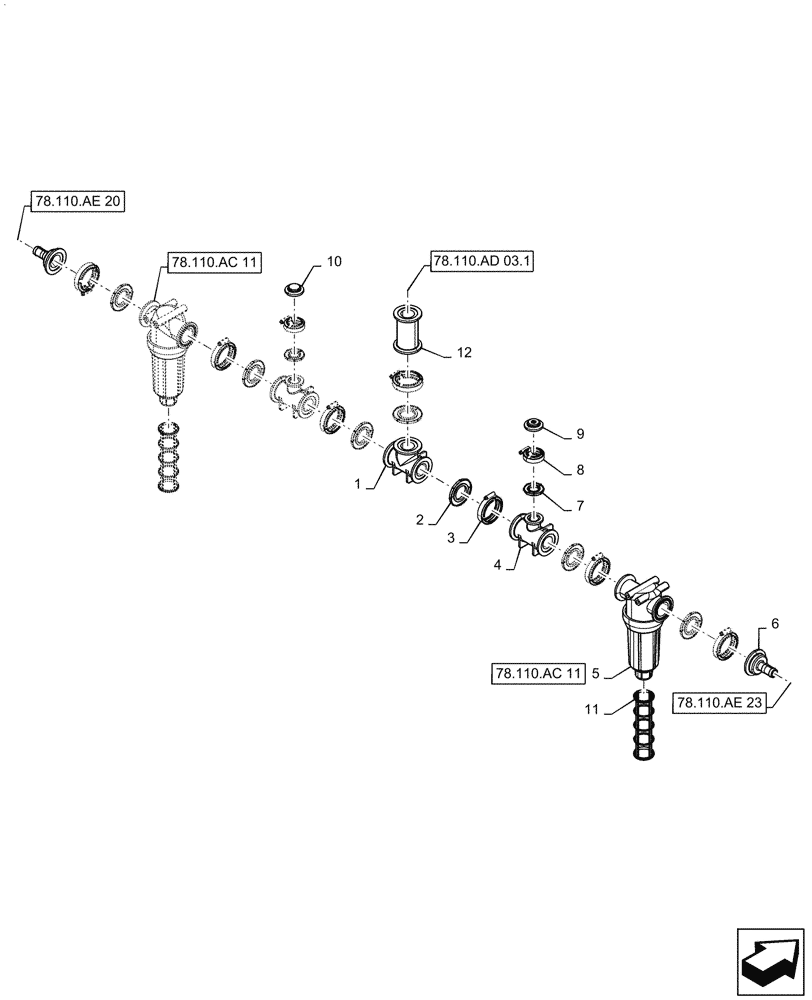

Схема запчастей Case IH PATRIOT 3340 - (78.110.AD[04.1]) - CENTER SECTION MANIFOLD, 6 SEC LOW FLOW ASN YGT042518 (78) - SPRAYING
78.110.ad 03.1
12
4
8
9
7
6
11
5
3
1
2
10
78.110.ae 23
78.110.ae 20
78.110.ac 11
78.110.ac 11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

1шт.

2

47888705

GASKET

2" Flange, EPDM

7шт.

3

BN303199

CLAMP,2" Flange

7шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2шт.

5

87265489

FILTER STRAINER

2" Flange

2шт.

See Fig 78.110.AC 11 For Service

1шт.

6

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2шт.

7

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1” Flange, EPDM

2шт.

8

BN303203

CLAMP,1" Flange

1" Flange

2шт.

9

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

10

BN306897

PLUG,1" Flange, Poly

1шт.

11

87265492

SCREEN,80 Mesh, SST, Blue

2шт.

12

BN306907

FITTING,2" Flange x 2" Flange, Poly

1шт.

Выбрано товаров: 13
