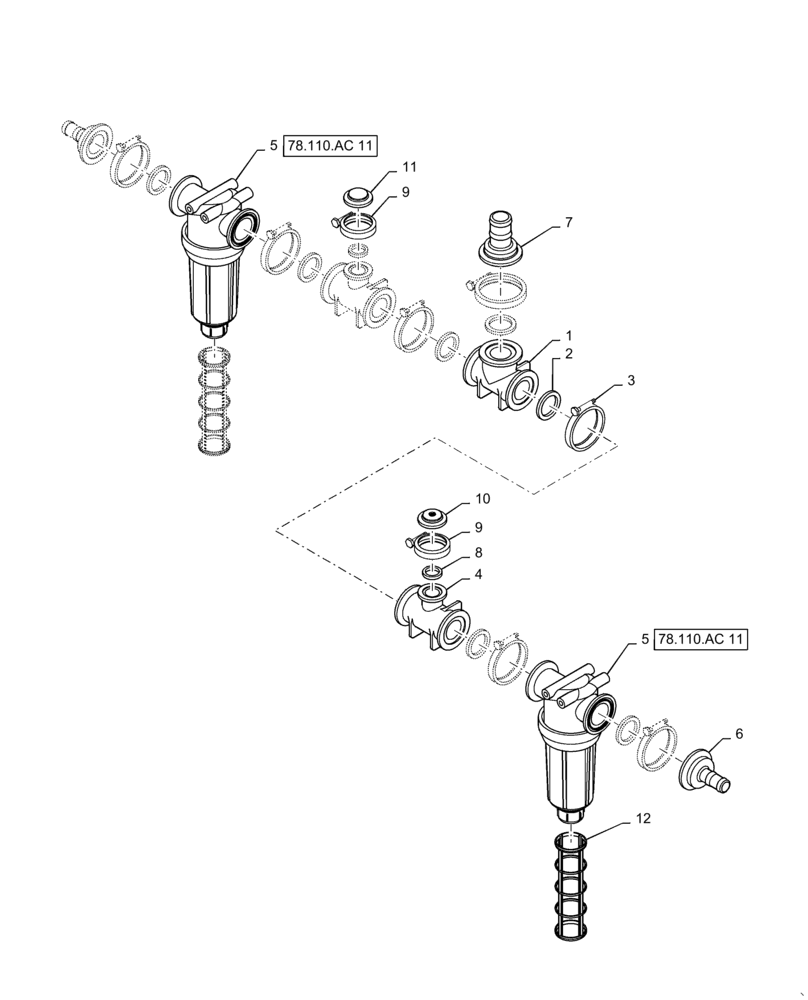

Запчасти Case IH PATRIOT 3340 (78.110.AD[04]) - CENTER SECTION MANIFOLD, 6 SEC LOW FLOW, BSN YGT042519 (78) - SPRAYING

1

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange, Poly

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

7шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

7шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

2шт.

5

87265489

FILTER STRAINER

Strainer, 2" Flange

2шт.

See Fig 78.110.AC 11 For Service Parts

1шт.

6

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

2шт.

7

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1 - 1/2" Hose Barb, Poly

1шт.

8

BN303205

GASKET

1” Flange, EPDM

2шт.

9

BN303203

CLAMP,1" Flange

1" Flange

2шт.

10

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1" Flange x 1/4" FPT, Poly

1шт.

11

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

12

87265492

SCREEN,80 Mesh, SST, Blue

80 Mesh, Stainless Steel

2шт.
