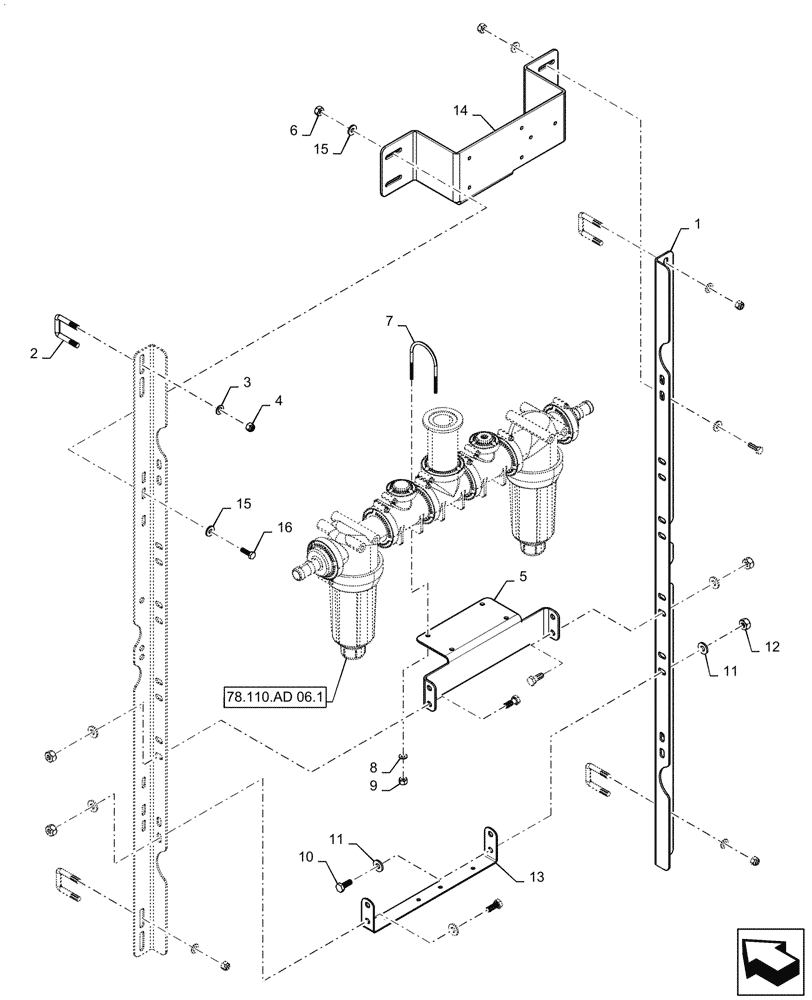

Запчасти Case IH PATRIOT 3340 (78.110.AD[03.2]) - CENTER SECTION MANIFOLD MOUNTING, 6 SEC, LOW FLOW, ASN YGT044000 (78) - SPRAYING

1

48008428

MOUNT

Verticals

2шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

4шт.

3

BN50146

WASHER,3/8", Stainless

8шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

5

87265454

SUPPORT

Center

1шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

7

BN303201

U-BOLT

1/4" x 2 3/8" x 3 3/4"

2шт.

8

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

9

87343957

NUT,1/4" - 20

4шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

13

48004878

BRACKET

Electrical Component

1шт.

14

48004876

BRACKET

Node Mount

1шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

16

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.
