Запчасти Case IH PATRIOT 3340 (10.310.AA[01]) - AIR INTAKE, AND AFTERCOOLER (10) - ENGINE

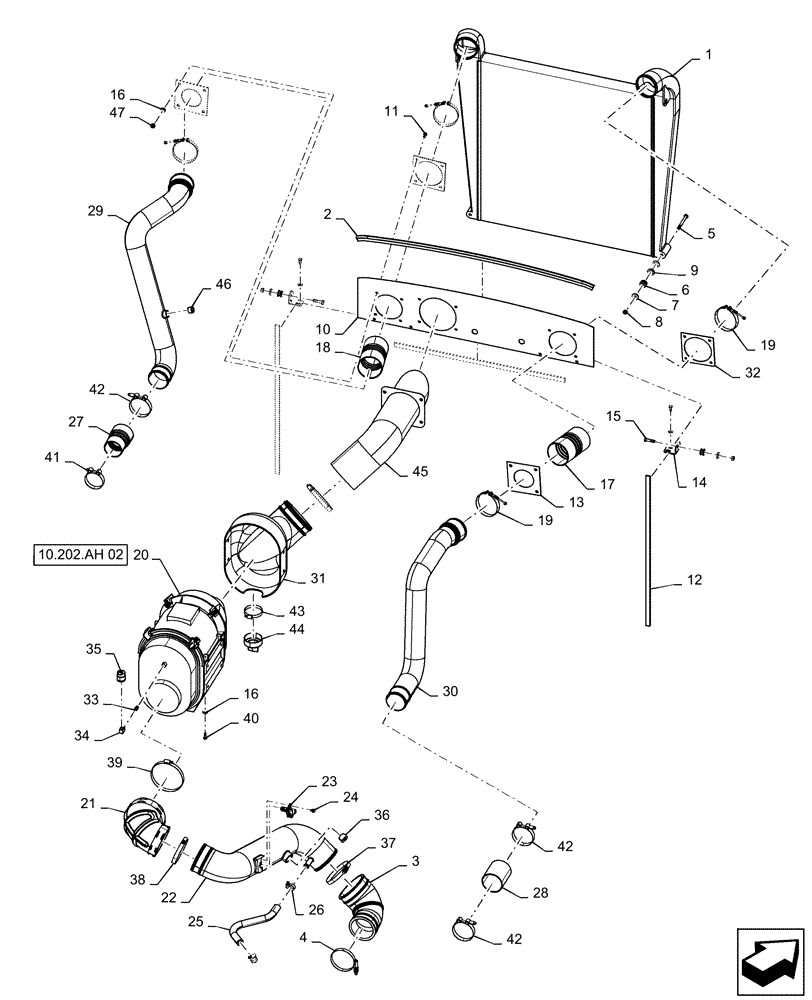

Схема запчастей Case IH PATRIOT 3340 - (10.310.AA[01]) - AIR INTAKE, AND AFTERCOOLER (10) - ENGINE
10
35
22
27
38
12
11
18
37
40
20
13
46
29
21
2
30
26
6
19
24
42
5
7
28
19
31
16
25
4
9
1
17
41
33
44
23
36
34
42
14
43
8
45
47
16
32
42
15
10.202.ah 02
39
3

Артикул

Название

Примечание

Количество

1

437398A1

AFTERCOOLER

Charge Air

1шт.

2

BN29710

WEATHERSTRIP

Bulk

1шт.

3

47562716

90 ELBOW

Turbo Hose Inlet

1шт.

4

87525506

CLAMP,3.75" - 4.62", Worm Gear

Hose

1шт.

5

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 x 100, DOR

2шт.

6

434177A1

ISOLATOR

Rubber

4шт.

7

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

9

BN50179

WASHER

CAC Mount

4шт.

10

84543662

BAFFLE

CAC Tubes

1шт.

11

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

12

84597655

RUBBER SEAL

Bulb

1шт.

13

47371685

SEAL

Charge Air Tubes

2шт.

14

47415947

MOUNT

CAC

2шт.

15

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

24шт.

17

87306140

BELLOWS

CAC

1шт.

18

251400A1

BELLOWS

CAC

1шт.

19

349360A1

CLAMP

Hose, Spring

4шт.

20

84553454

AIR FILTER

Comlpete, See 10.202.AH 02 For Service Parts

1шт.

21

87418236

ELBOW

90 Degree

1шт.

22

84553456

AIR INTAKE TUBE

1шт.

23

87482355

SENSOR

1шт.

24

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

25

47596045

HOSE

CCV

1шт.

26

87487835

CLAMP,0.69" - 1.25"

#12

2шт.

27

87270662

INTAKE AIR HOSE

1шт.

28

87340760

INTAKE AIR HOSE,88.90 mm ID x 110.00

1шт.

29

84543657

TUBE

CAC Cold

1шт.

30

84543656

TUBE

CAC Hot

1шт.

31

84553455

DUCT

Air Cleaner

1шт.

32

47371747

MOUNT

CAC Tube Seal

2шт.

33

D36264

FITTING

Air Cleaner Adapter

1шт.

34

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

35

279492A1

RESTRICTION SWITCH

Air

1шт.

36

86625135

PLUG,1" - 11-1/2 NPT

1шт.

37

L124802

COLLAR CLAMP

Hose

1шт.

38

87485010

CLAMP,4.75" - 5.62", Worm Gear

5-1/2" Hose

1шт.

39

87485016

CLAMP,5.75" - 6.62", Worm Gear

6-1/2" Hose

2шт.

40

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

41

BN300759

CLAMP

T- Bolt

1шт.

42

87270795

CLAMP

T- Bolt

3шт.

43

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

44

S113982

CAP

Vacuator

1шт.

45

84553518

AIR INTAKE TUBE

1шт.

46

217-441

PLUG,Hex Soc, 3/4" - 14 NPTF

1шт.

47

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

Выбрано товаров: 47
