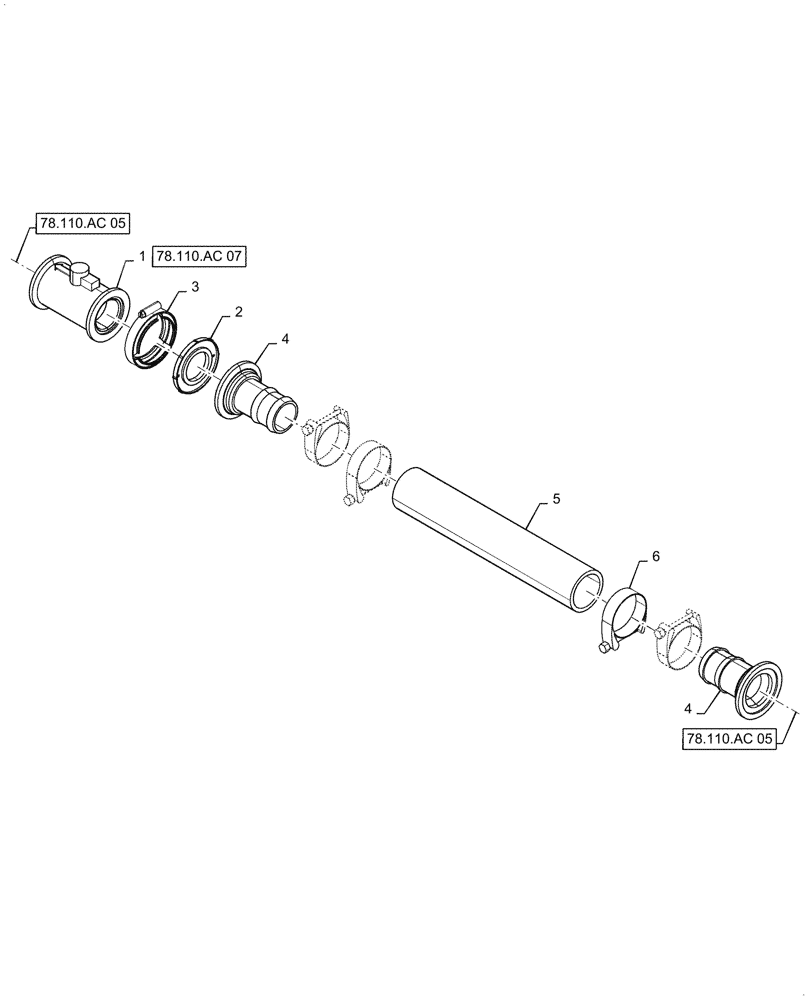

Запчасти Case IH PATRIOT 3340 (78.110.AC[09.1]) - STANDARD FLOWMETER PLUMBING ASN YGT042518 (78) - SPRAYING

1

87265851

METER

Flowmeter, RFM100

1шт.

See Fig 78.110.AC 08 For Service

1шт.

2

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange, EPDM

1шт.

3

BN313773

CLAMP,2" Full Port

1шт.

4

BN303198

FITTING,2" Flange x 2" Hose Barb, Poly

2шт.

5

BN29564

HOSE

2" Suction, Bulk, 100' Roll

1шт.

6

BN2403358

CLAMP,50.8mm - 63.5mm

T Bolt

4шт.
