(78.110.AC[09]) - LOW FLOW FLOWMETER PLUMBING, BSN YGT042519

Запчасти Case IH PATRIOT 3340 (78.110.AC[09]) - LOW FLOW FLOWMETER PLUMBING, BSN YGT042519 (78) - SPRAYING

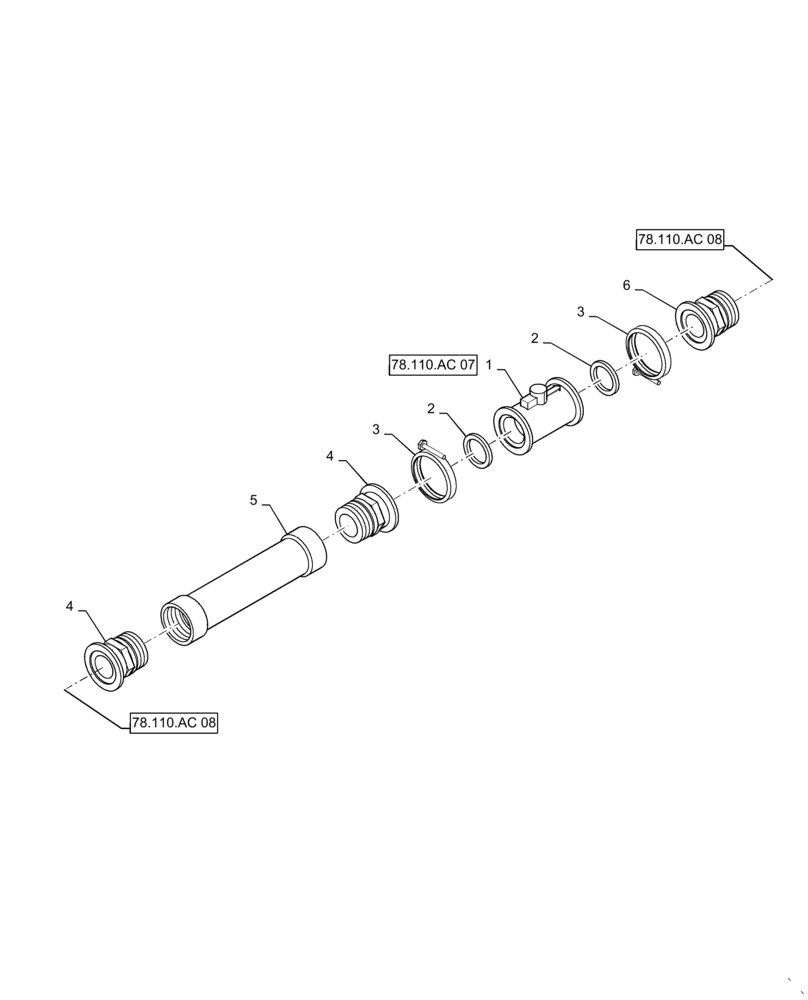

Схема запчастей Case IH PATRIOT 3340 - (78.110.AC[09]) - LOW FLOW FLOWMETER PLUMBING, BSN YGT042519 (78) - SPRAYING
2
78.110.ac 08
78.110.ac 07
2
78.110.ac 08
3
6
5
4
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87271267

MEASURING INSTRUMENT

Flowmeter, RFM60P H/P W/D, See Fig 75.120.41 For Service Parts

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

4

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

5

87268152

PIPE

Standard

1шт.

6

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.
