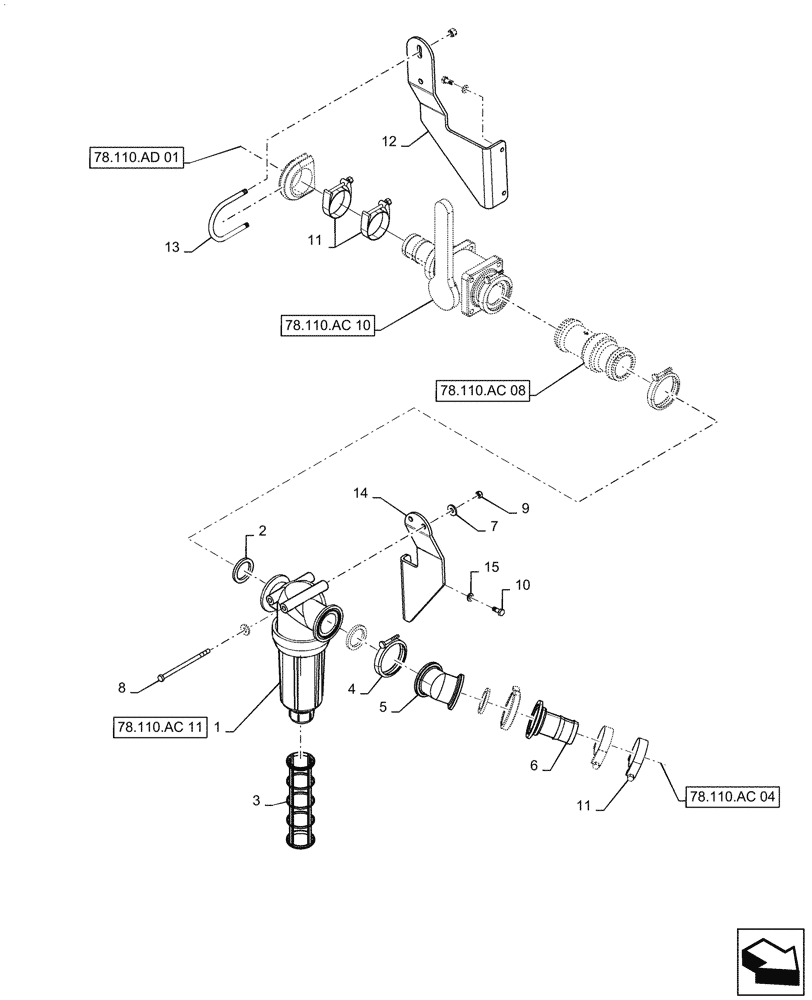

Запчасти Case IH PATRIOT 3340 (78.110.AC[06]) - STRAINER AND THROTTLE VALVE, BSN YGT042519 (78) - SPRAYING

1

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

See 78.110.AC 11 For Service Parts

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

5

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

6

BN303198

FITTING,2" Flange x 2" Hose Barb, Poly

2" Flange x 2" Hose Barb

1шт.

7

BN300506

WASHER

8 mm

4шт.

8

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2-1/2"

2шт.

12

47371558

MOUNT

Throttle Valve

1шт.

13

BN320384

U-BOLT

2"

2шт.

14

87271470

BRACKET, SUPPORTING

Filter

1шт.

15

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.
