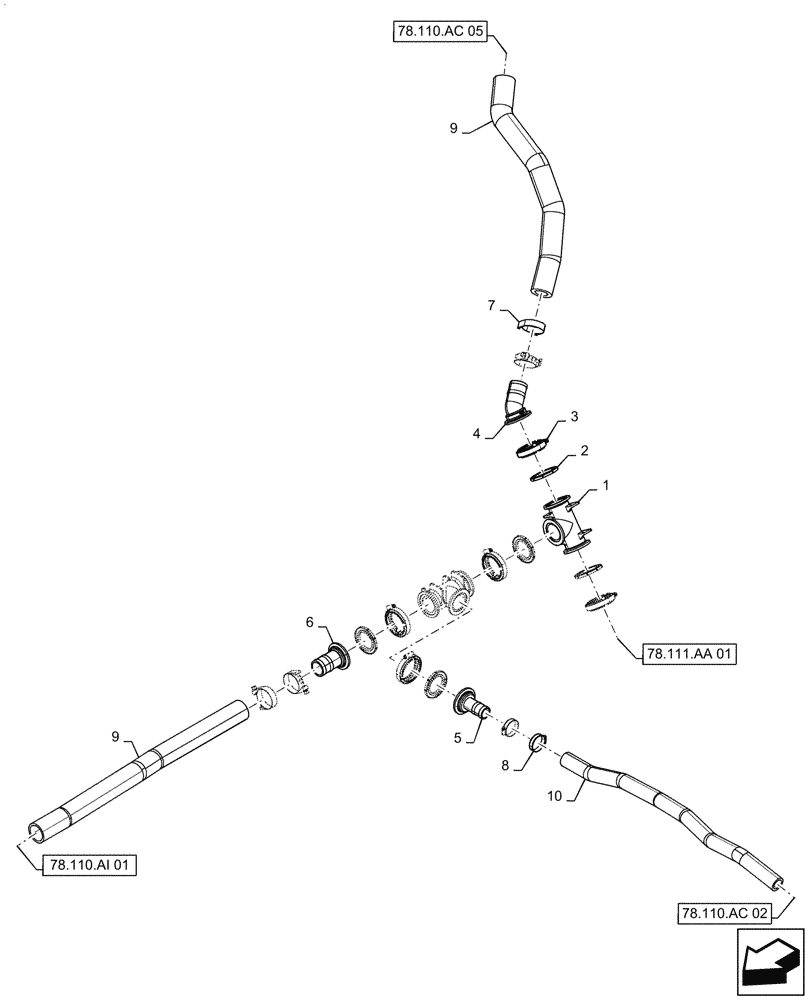

Запчасти Case IH PATRIOT 3340 (78.110.AC[04.2]) - PRODUCT PUMP PLUMBING, ASN YGT042518 (78) - SPRAYING

1

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2шт.

2

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange

5шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

5шт.

4

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

45°, 2" Flange x 2" Hose Barb

1шт.

5

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

1шт.

6

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

7

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band, 2 -1/2"

4шт.

8

BN310448

HOSE CLAMP

#28, SST

2шт.

9

BN29564

HOSE

2" Bulk, 20' Roll

1шт.

10

BN53621

HOSE,1.50" ID BULK

Suction, 20' Roll

1шт.
