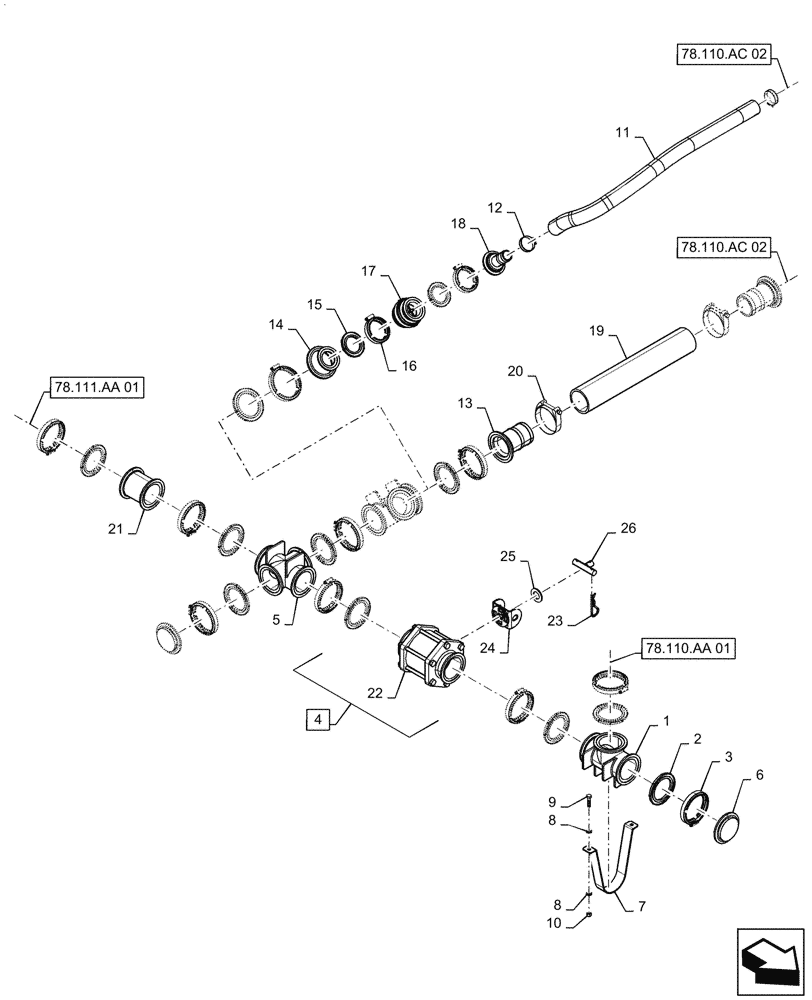

Запчасти Case IH PATRIOT 3340 (78.110.AC[03.2]) - SUMP PLUMBING, ASN YGT042518 (78) - SPRAYING

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

2шт.

2

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

3" Flange

10шт.

3

BN321074

CLAMP,101.6mm

3" Flange

10шт.

4

BN322929

VALVE

Complete, Incl 22 - 26

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

1шт.

6

BN321079

PLUG,3" Flange

3"

2шт.

7

86986136

STRAP

Sump Tee

1шт.

8

BN50146

WASHER,3/8", Stainless

4шт.

9

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

11

BN53621

HOSE,1.50" ID BULK

20' Roll

1шт.

12

BN310448

HOSE CLAMP

# 28, SST

2шт.

13

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

2шт.

14

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

1шт.

15

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange

2шт.

16

BN313773

CLAMP,2" Full Port

Flange

2шт.

17

47767404

VALVE

2" Flange

1шт.

18

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

1шт.

19

47919896

HOSE

3" x 20"

1шт.

20

BN2403395

CLAMP

T - Bolt

2шт.

21

BN324192

TUBE

3" Flange x 3" Flange

1шт.

22

BN321070

VALVE,3" Flange

Ball

1шт.

23

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16"

2шт.

24

BN323899

PLATE

Valve Handle

1шт.

25

BN323898

WASHER

Valve Handle

1шт.

26

BN323341

PIN

Valve Handle

1шт.
