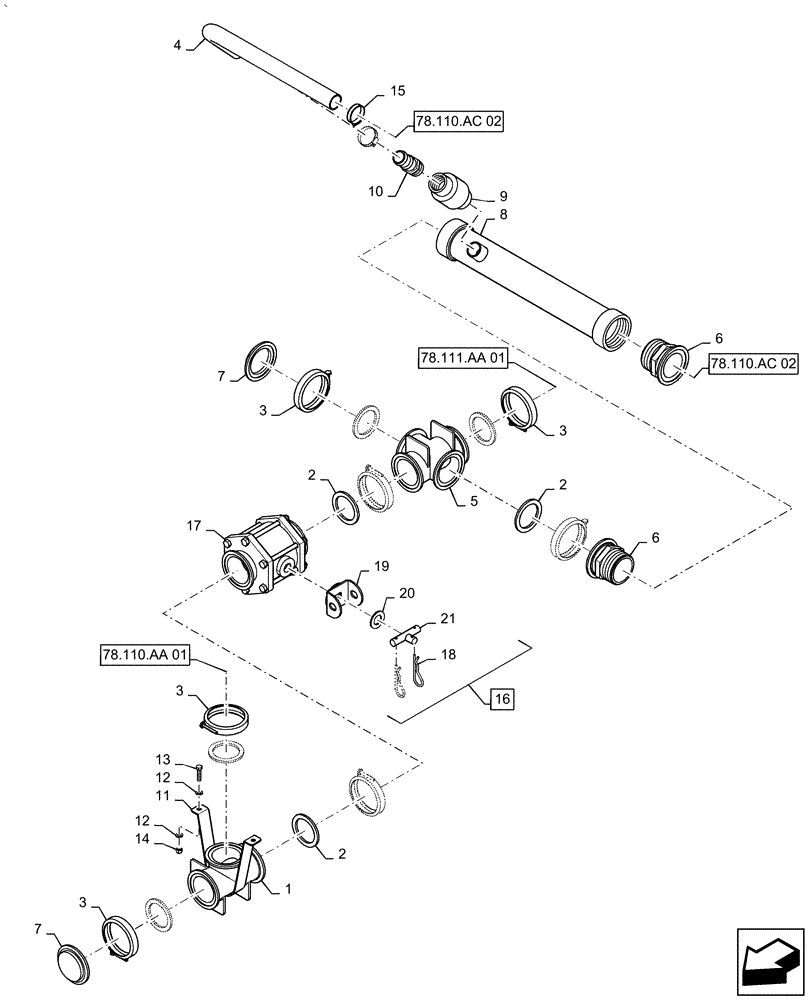

Запчасти Case IH PATRIOT 3340 (78.110.AC[03.1]) - SUMP PLUMBING, BSN YGT042519 (78) - SPRAYING

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

2шт.

2

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

6шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

6шт.

4

BN53842

HOSE,38.10 mm ID Bulk

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

6

BN321078

ADAPTER

Straight, 3" Flange x 3" MPT

2шт.

7

BN321079

PLUG,3" Flange

Manifold, 3"

2шт.

8

87730318

TUBE,627 mm L

3" Fill

1шт.

9

84347992

CHECK VALVE

1 -1/4" MPT

1шт.

10

BN2294412

FITTING

Straight, 1 -1/4" MPT x 1 -1/2" HB

1шт.

11

86986136

STRAP

Sump Tee

1шт.

12

BN50146

WASHER,3/8", Stainless

4шт.

13

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

15

BN310448

HOSE CLAMP

# 28, SST

2шт.

16

BN322929

VALVE

Complete, Incl 17 - 21

1шт.

17

BN321070

VALVE,3" Flange

Ball, Manifold, 3"

1шт.

18

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16"

2шт.

19

BN323899

PLATE

Valve Handle

1шт.

20

BN323898

WASHER

Valve Handle

1шт.

21

BN323341

PIN

Valve Handle

1шт.
