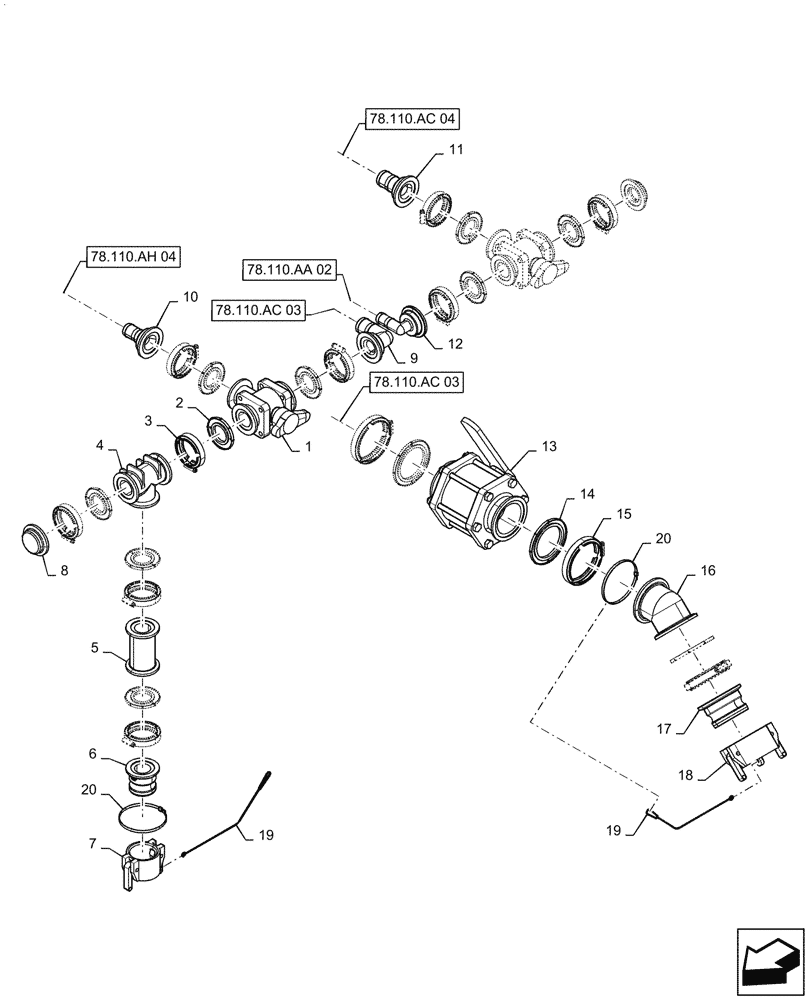

Запчасти Case IH PATRIOT 3340 (78.110.AC[02.3]) - FILL STATION PLUMBING, ASN YGT042518 (78) - SPRAYING

1

BN324998

VALVE

Ball, 2" Flange x 2" Flange

2шт.

2

47888705

GASKET

2" Flange, EPDM

9шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

9шт.

4

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange

1шт.

5

BN306907

FITTING,2" Flange x 2" Flange, Poly

1шт.

6

47828304

ADAPTER,2" Flange x 2" Male Adapter

2" Flange x 2" Cam Lock

1шт.

7

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

8

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

2шт.

Not Used If Equipped With Foam Or Eductor Options

1шт.

9

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 -1/2" Hose Barb

1шт.

10

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 -1/4" Hose Barb

1шт.

11

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1 -1/2" HB

1шт.

12

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" HB

1шт.

13

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

14

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

Manifold, 3"

3шт.

15

BN321074

CLAMP,101.6mm

Manifold, 3"

3шт.

16

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

45º Manifold 3"

1шт.

17

343025A1

ADAPTER,3" Full Port Flange x 3" Male Adapter

3" Manifold x 3" Cam

1шт.

18

BN2393384

CAP

Coupler 3" Dust

1шт.

19

416624A1

ROPE

Nylon, 1/4" x 12"

2шт.

20

306132C1

CABLE TIE,14.5" L

Cable Tie

2шт.
