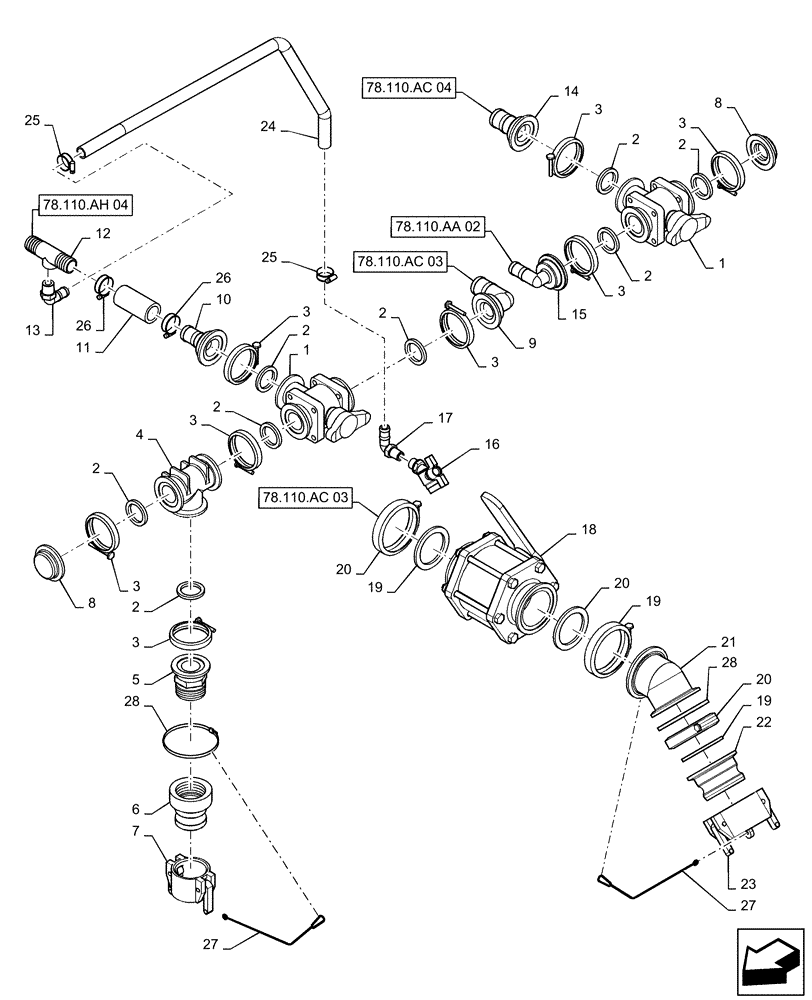

Запчасти Case IH PATRIOT 3340 (78.110.AC[02.1]) - FILL STATION PLUMBING, BSN YFT041440 (78) - SPRAYING

1

BN324998

VALVE

Ball, 2" Flange x 2" Flange

2шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

8шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

8шт.

4

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange

1шт.

5

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

6

BN304330

ADAPTER

2" Cam x 2" NPT

1шт.

7

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

8

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

2шт.

Not Used If Equipped With Foam Or Eductor Options

1шт.

9

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 -1/2" Hose Barb

1шт.

10

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 -1/4" Hose Barb

1шт.

11

87271155

HOSE,1.25" ID

Bulk, Suction

1шт.

12

BN311026

TEE

1 1/4" HB x 1 -1/4" HB x 3/4" FPT

1шт.

13

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

90°, 3/4" NPT x 3/4" HB

1шт.

14

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1 -1/2" HB

1шт.

15

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" HB

1шт.

16

BN53817

DRAIN VALVE

Ball, 1/2" NPT x Garden Hose Thread, Blue Handle

1шт.

17

BN73519

ELBOW

1/2" NPT x 3/4" HB

1шт.

18

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

19

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

3шт.

20

BN321074

CLAMP,101.6mm

Manifold, 3"

3шт.

21

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

45º Manifold 3"

1шт.

22

343025A1

ADAPTER,3" Full Port Flange x 3" Male Adapter

3" Manifold x 3" Cam

1шт.

23

BN2393384

CAP

Coupler 3" Dust

1шт.

24

BN27905

HOSE,19.05mm ID x 304.8mm L

Bulk, 3/4", EPDM

1шт.

25

BN310446

HOSE CLAMP

#12, SST

2шт.

26

BN310447

HOSE CLAMP

#20, SST

2шт.

27

416624A1

ROPE

Nylon, 1/4" x 12"

2шт.

28

306132C1

CABLE TIE,14.5" L

Cable Tie

2шт.
