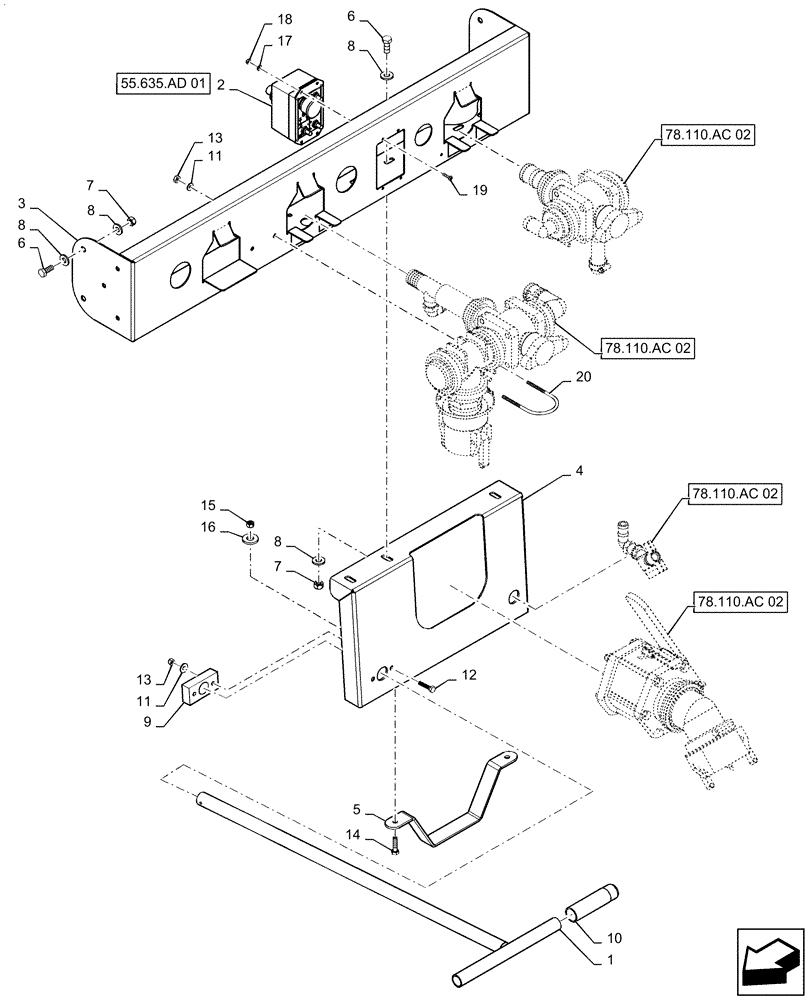

Запчасти Case IH PATRIOT 3340 (78.110.AC[01]) - FILL STATION (78) - SPRAYING

1

343411A1

HANDLE

3" Valve

1шт.

2

87266536

CONTROL UNIT

Remote Station Reload Center, Complete, See 55.635.AD 01 For Service Parts

1шт.

3

87271621

BASE PLATE

Fill Station

1шт.

4

87270439

MOUNTING PLATE

Fill Valve T-Handle

1шт.

5

87270440

RETAINER

Fill Valve

1шт.

6

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

7шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

9

BN323177

BUSHING

Valve Handle Extension

1шт.

10

BN323880

GRIP

Handle, 1" ID Vinyl

2шт.

11

BN50138

WASHER,1/4", SS

4шт.

12

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1 -1/4", SST

2шт.

13

BN55359

LOCK NUT,1/4"-20, SS

4шт.

14

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

15

353308

NUT,M6 x 1.0, Cl 8

2шт.

16

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

17

BN310265

WASHER

10, SST

4шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

19

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x 3/4", BSH, SST

4шт.

20

BN303201

U-BOLT

1/4" x 2 -3/8" x 3 -3/4"

1шт.
