(78.110.AB[08]) - 120, 7 SECTION, INNER BOOM SHUT-OFF VALVE

Запчасти Case IH PATRIOT 3340 (78.110.AB[08]) - 120, 7 SECTION, INNER BOOM SHUT-OFF VALVE (78) - SPRAYING

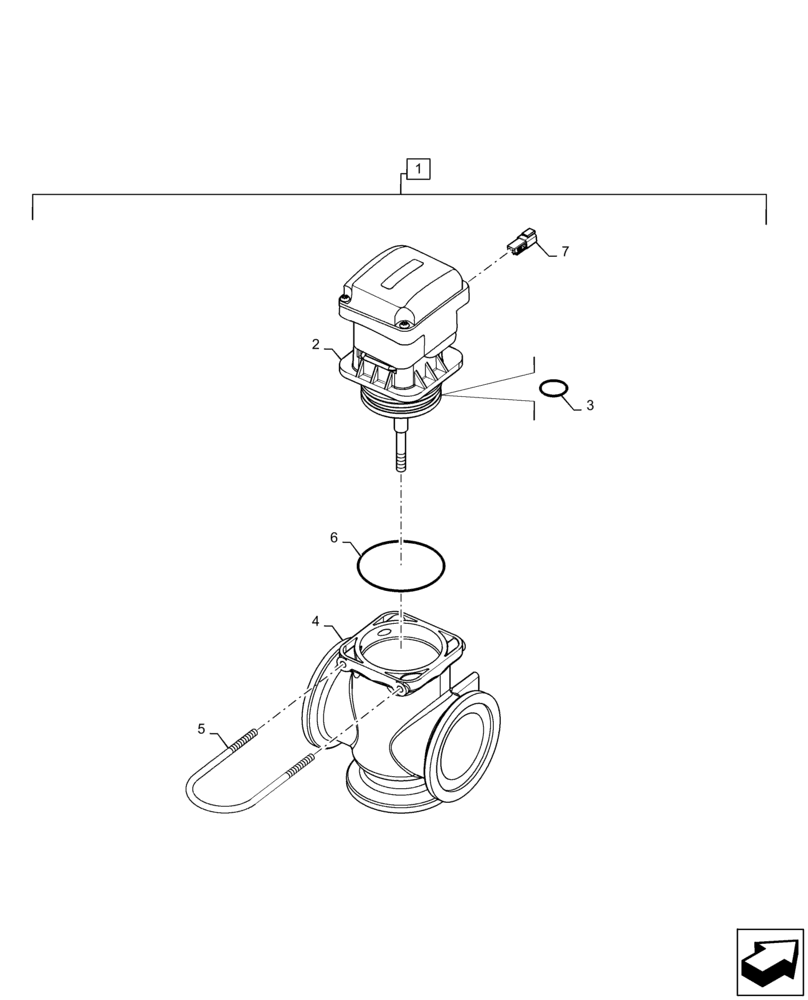

Схема запчастей Case IH PATRIOT 3340 - (78.110.AB[08]) - 120, 7 SECTION, INNER BOOM SHUT-OFF VALVE (78) - SPRAYING
5
2
6
3
4
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87624338

SHUT-OFF VALVE

"T" Style, Plunger, 2.2"Flange Port x 2" Flange Port x 2" Flange Port, Incl 2 - 7

1шт.

2

87658830

MOTOR-PUMP

1шт.

3

87658834

SERVICE KIT

High Flow Plunger

1шт.

4

87658832

VALVE BODY

3 Port, "T" Style

1шт.

5

87658833

CLIP

High Flow Motor

1шт.

6

14464481

O-RING,0.139" Thk x 1.984" ID, -226, Cl 7, 75 Duro

Valve Motor Seal

1шт.

7

87695548

TERMINAL CONNECTOR

Male, 3 Connector

1шт.
