Запчасти Case IH PATRIOT 3340 (78.110.AB[04]) - 90, 5 AND 6 SECTION, SINGLE BOOM VALVE, DUAL STRAINER (78) - SPRAYING

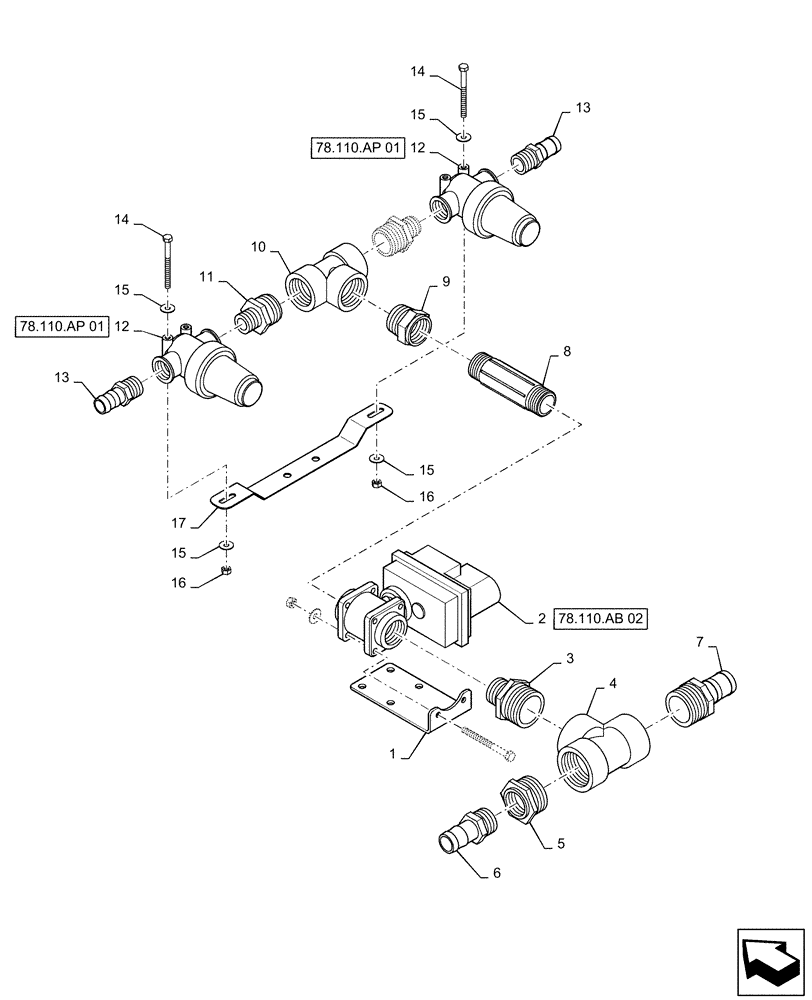

Схема запчастей Case IH PATRIOT 3340 - (78.110.AB[04]) - 90, 5 AND 6 SECTION, SINGLE BOOM VALVE, DUAL STRAINER (78) - SPRAYING
78.110.ap 01
11
15
15
78.110.ap 01
9
3
4
15
6
78.110.ab 02
7
12
8
12
16
17
5
13
15
1
10
2
14
16
14
13

Артикул

Название

Примечание

Количество

1

BN320992

BRACKET

NPT Ball Valve

1шт.

2

87268179

VALVE

1.25" Ball, Electric, Boom Shut Off Valve

1шт.

See 78.110.AB 02 For Service Parts

1шт.

3

BN317158

NIPPLE,2" Male NPT x 1-1/4" Male NPT

2" NPT x 1-1/4" NPT, Reducer

1шт.

4

BN73779

TEE,2" Poly Tee

2" NPT

1шт.

5

BN73755

BUSHING,2" Male NPT x 1-1/4" Female NPT, Poly

2" NPT x 1-1/4" NPT, Reducer

1шт.

6

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb

1шт.

7

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

8

BN321466

LUBE NIPPLE,1-1/4" Male NPT x 1-1/4" Male NPT, 6" Long

1-1/4" NPT X 6"

1шт.

9

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1-1/2" NPT X 1-1/4" NPT

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT

1шт.

11

BN73741

NIPPLE

1-1/2" NPT x 1" NPT

2шт.

12

BN320072

FILTER STRAINER

1" NPT, 50 Mesh

2шт.

See 78.110.AP 01 For Service Parts

1шт.

13

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb

2шт.

14

BN320109

BOLT,5/16"-18 X 3.50", Stainless

2шт.

15

BN50142

WASHER,5/16", Stainless Steel

4шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

17

BN320993

BRACKET

Strainer

1шт.

Выбрано товаров: 19
