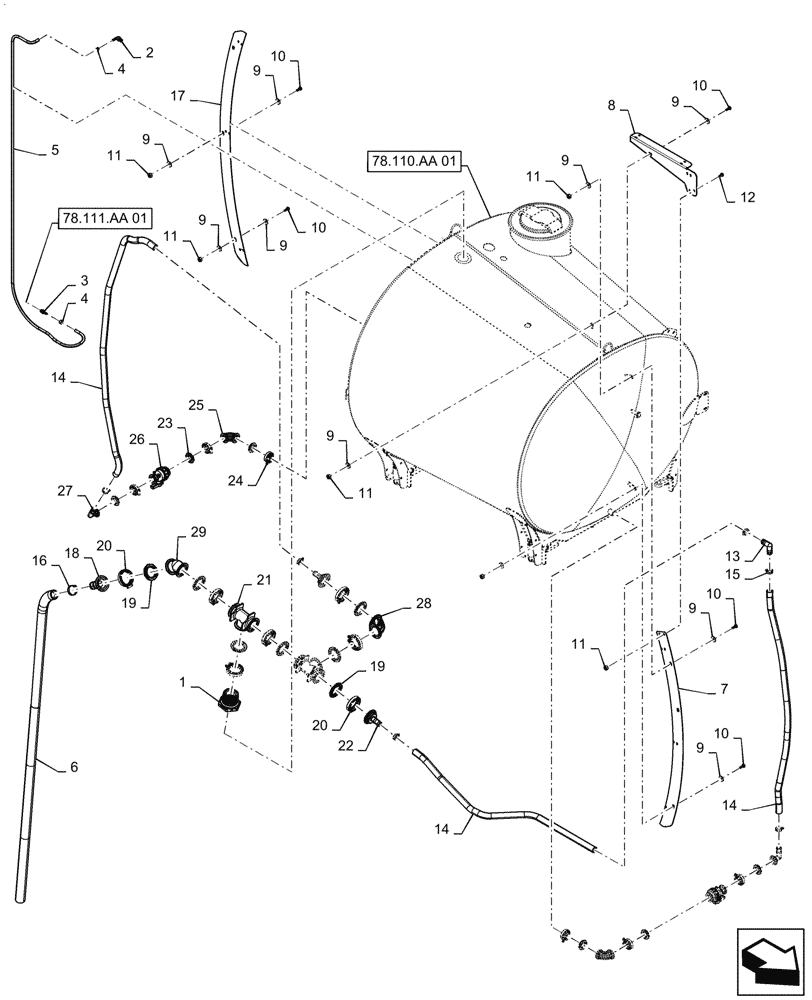

Запчасти Case IH PATRIOT 3340 (78.110.AA[04]) - SIGHT GAUGE, AND VENT, ASN YGT042518 (78) - SPRAYING

1

47917381

BULKHEAD,2" Flange

1 -1/2" FPT, Bulkhead

1шт.

2

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" MPT x 1/4" HB

1шт.

3

BN72040

FITTING,1/8" MPT x 1/4" HB

1/8" MPT x 1/4" HB

1шт.

4

BN310450

HOSE CLAMP

#3, SST

2шт.

5

BN72041

HOSE

1/4" Bulk, EPDM Discharge, 20' Roll

1шт.

6

BN309785

HOSE

1 -1/2" KANAFLEX, 33' Bulk Roll

1шт.

7

87580662

PLATE

Sight Gauge, Front

1шт.

8

87580664

PLATE

Plate, Top Sight Guage

1шт.

9

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

14шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

9шт.

12

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

13

342684A1

FITTING,1" 90 Degree Poly Hose Barb Elbow

90º, 1.0" HB x 1.0" HB

1шт.

14

47497892

TUBE

1.0" ID x 1/8" Wall Clear Vinyl

3шт.

15

BN75990

HOSE CLAMP

# 16, SST

6шт.

16

BN310448

HOSE CLAMP

#28, SST

1шт.

17

87593258

PLATE

Sight Gauge, Rear

1шт.

18

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

1шт.

19

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange

7шт.

20

BN313773

CLAMP,2" Full Port

Flange

7шт.

21

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2шт.

22

47917418

FITTING,2" FP Flange x 1" Hose Barb

2" Flange x 1" HB

2шт.

23

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange

6шт.

24

BN303203

CLAMP,1" Flange

1" Flange

6шт.

25

47917419

FITTING,90 Degree 1" Flange

90°, 1" Flange

2шт.

26

47909417

VALVE,1" Manifold Full Port Union Valve

1" Flange

2шт.

27

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

2шт.

28

47767922

FITTING,2" Full Port Flange x Flange Sweep

90°, 2" Flange

1шт.

29

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

1шт.
