(78.110.AA[04]) - SIGHT GAUGE AND VENT, BSN YGT042519

Запчасти Case IH PATRIOT 3340 (78.110.AA[04]) - SIGHT GAUGE AND VENT, BSN YGT042519 (78) - SPRAYING

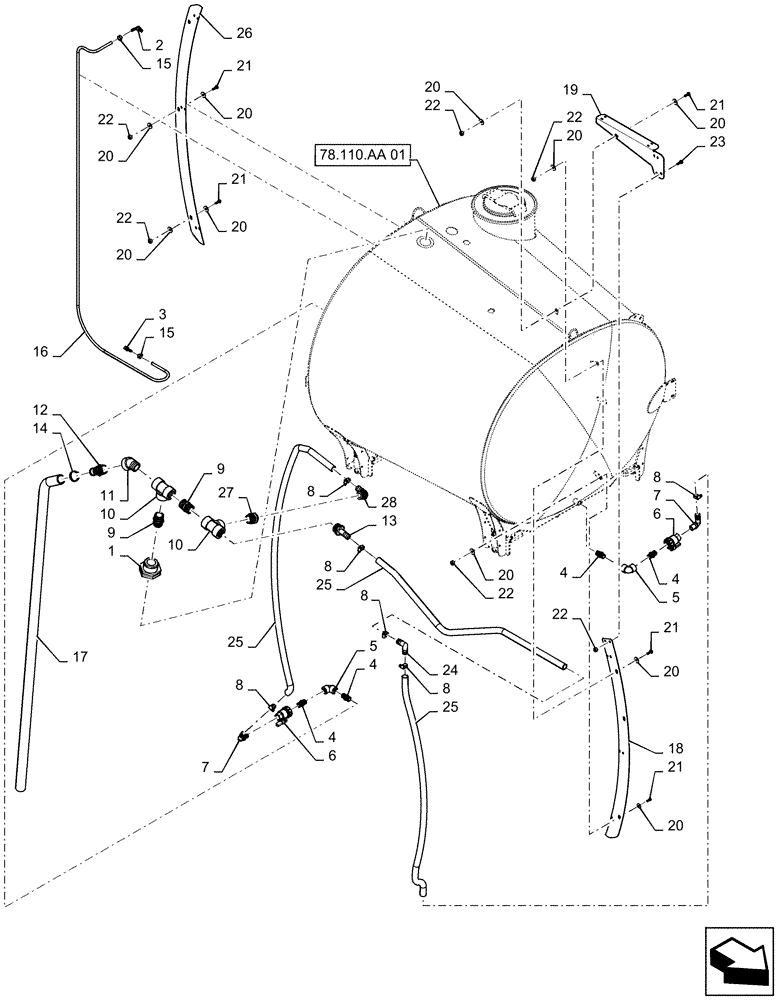

Схема запчастей Case IH PATRIOT 3340 - (78.110.AA[04]) - SIGHT GAUGE AND VENT, BSN YGT042519 (78) - SPRAYING
10
20
6
2
11
21
20
27
1
4
21
25
22
17
7
6
22
21
8
12
23
20
25
19
5
20
26
4
16
9
21
20
4
8
3
22
15
4
8
20
20
78.110.aa 01
22
5
24
28
8
18
25
8
15
22
10
22
13
20
20
21
14
7
8
20
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73733

FITTING

1 -1/2" FPT, Bulkhead

1шт.

2

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" MPT x 1/4" HB

1шт.

3

BN72040

FITTING,1/8" MPT x 1/4" HB

1/8" MPT x 1/4" HB

1шт.

4

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short

4шт.

5

87580531

90 ELBOW,3/4" 90 Degree Poly Elbow

90º, 3/4" FPT

2шт.

6

BN324588

VALVE

Ball 3/4" FPT, Union

2шт.

7

134271C2

ELBOW,ELBOW, 90

3/4" MPT x 1" HB

2шт.

8

87487834

CLAMP,0.81" - 1.5"

#16, SST

6шт.

9

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 -1/2" Short

2шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1 -1/2" FPT

2шт.

11

BN310467

ELBOW

1 -1/2" MPT x 1 -1/2" MPT, 45º

1шт.

12

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

Straight, 1 -1/2" MPT x 1 -1/2" HB

1шт.

13

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

Straight, 1 -1/2" MPT x 1" HB

1шт.

14

BN310448

HOSE CLAMP

#28, SST

1шт.

15

BN310450

HOSE CLAMP

#3, SST

2шт.

16

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

17

BN309785

HOSE

1 -1/2" KANAFLEX, Bulk

1шт.

18

87580662

PLATE

Sight Gauge, Front

1шт.

19

87580664

PLATE

Plate, Top Sight Guage

1шт.

20

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

14шт.

21

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

22

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

9шт.

23

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

24

342684A1

FITTING,1" 90 Degree Poly Hose Barb Elbow

90º, 1.0" HB x 1.0" HB

1шт.

25

47497892

TUBE

1.0" ID x 1/8" Wall Clear Vinyl

1шт.

26

87593258

PLATE

Sight Gauge, Rear

1шт.

27

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1 -1/2" MPT x 1-1/4" FPT

1шт.

28

BN2296590

90 ELBOW

1" MPT x 1" HB

1шт.
