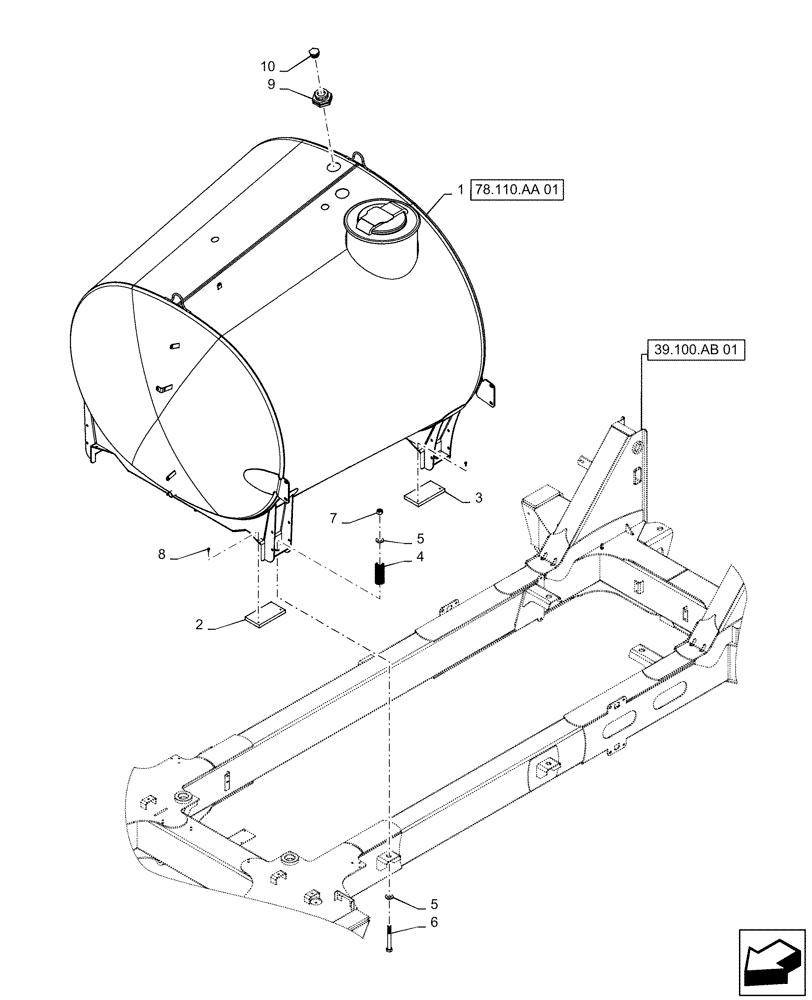

Запчасти Case IH PATRIOT 3340 (78.110.AA[03]) - MOUNTING PARTS, 1000 GAL, SST TANK, BSN YGT042519 (78) - SPRAYING

1

87730320

TANK

1000 GAL, Stainless, See 78.110.AA 01 For Service Parts

1шт.

2

87272750

PAD

Tank, 19mm, With Holes

2шт.

3

87272751

PAD

Tank, 25mm, With Holes

2шт.

4

BN312850

SPRING

1" ID x 4" Long

4шт.

5

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5mm, DOR

8шт.

6

87342000

BOLT,Hex, M20 x 160mm, Cl 10.9

M20 x 160mm, DOR

4шт.

7

87024336

NUT,M20 x 2.5, Cl 10

4шт.

8

87343659

SELF-TAP SCREW,Hex Wshr, 1/4" - 20 x 3/4"

8шт.

9

BN73733

FITTING

1 -1/2" Bulkhead

1шт.

10

BN73731

PLUG,1-1/2" Male NPT, Poly

1 -1/2" Poly Pipe

1шт.
