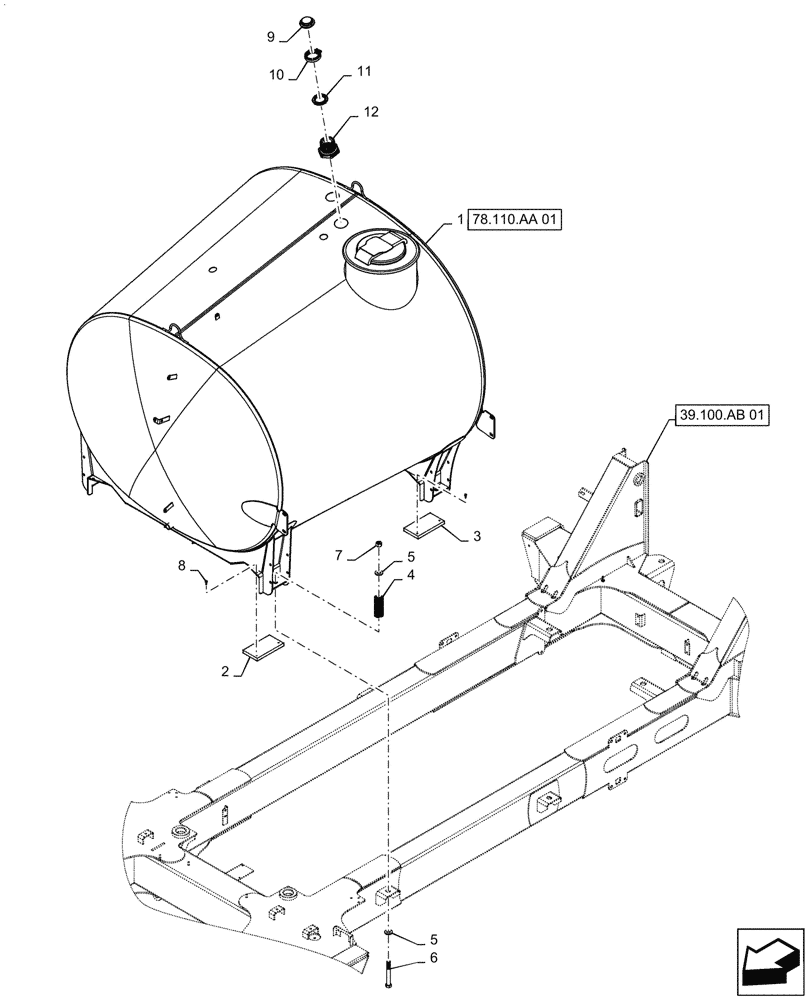

Запчасти Case IH PATRIOT 3340 (78.110.AA[03]) - MOUNTING PARTS, 1000 GAL SST TANK, ASN YGT042518 (78) - SPRAYING

1

47917435

TANK

1000 GAL, Stainless, See 78.110.AA 01 For Service

1шт.

2

87272750

PAD

Tank, 19mm

2шт.

3

87272751

PAD

Tank, 25mm

2шт.

4

BN312850

SPRING

1" ID x 4" Long

4шт.

5

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

8шт.

6

87342000

BOLT,Hex, M20 x 160mm, Cl 10.9

4шт.

7

87024336

NUT,M20 x 2.5, Cl 10

4шт.

8

87343659

SELF-TAP SCREW,Hex Wshr, 1/4" - 20 x 3/4"

8шт.

9

BN322574

PLUG,2" Flange

2" Flange

1шт.

10

47917381

BULKHEAD,2" Flange

Fitting, 2" Flange, for 3 1/4" Hole

1шт.

11

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange

1шт.

12

BN313773

CLAMP,2" Full Port

Flange

1шт.
