(78.110.AA[02]) - PRODUCT TANK RINSE, BSN YGT042519

Запчасти Case IH PATRIOT 3340 (78.110.AA[02]) - PRODUCT TANK RINSE, BSN YGT042519 (78) - SPRAYING

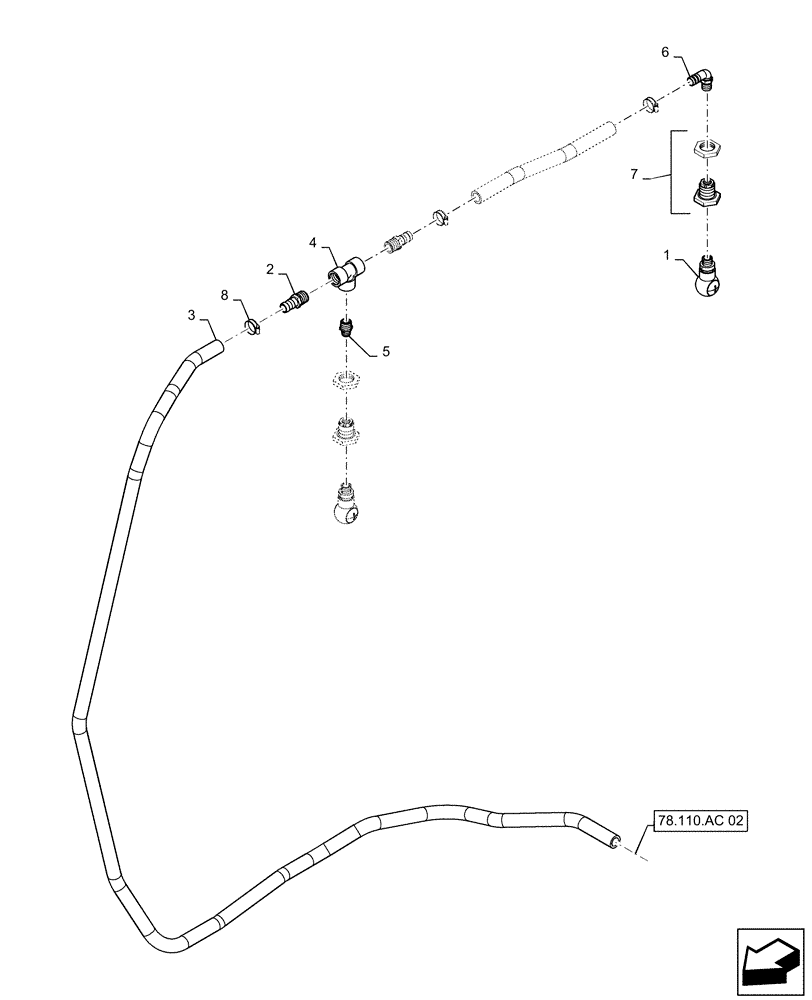

Схема запчастей Case IH PATRIOT 3340 - (78.110.AA[02]) - PRODUCT TANK RINSE, BSN YGT042519 (78) - SPRAYING
4
6
1
5
3
7
8
78.110.ac 02
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

343509A1

JET

Tank Rinse Nozzle

2шт.

2

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

Straight, 1" MPT x 1" HB

2шт.

3

BN53479

HOSE,1.00" ID BULK

Cut To Length Required

1шт.

4

BN73629

TEE

1" FPT

1шт.

5

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

Reducer, 1" MPT x 3/4" MPT

1шт.

6

134271C2

ELBOW,ELBOW, 90

3/4" MPT x 1" HB

1шт.

7

BN311041

FITTING

Bulkhead, 3/4" FPT

2шт.

8

BN310448

HOSE CLAMP

#28, SST

4шт.
